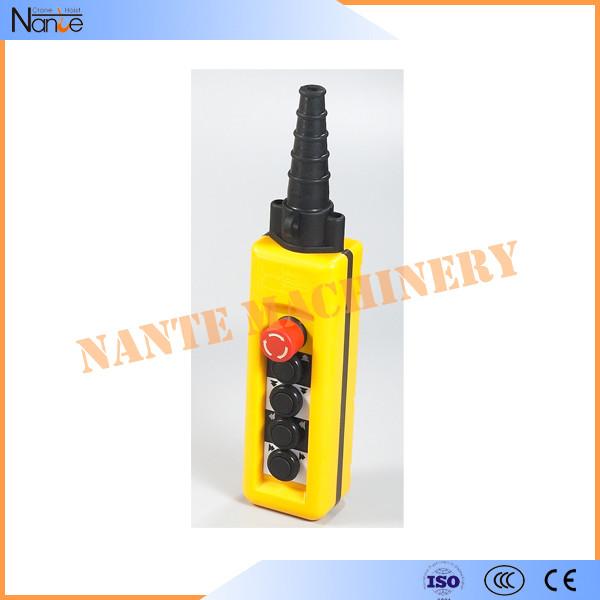

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control
Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control
Specifications
Brand Name :
NANTE
Model Number :
COBP-AS2
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500000 Piece/Pieces per Year
Delivery Time :
Within in 30days
Packaging Details :
cartons
Model Number: :
AS2
Electric rating: :
AC50/60Hz, AC400V/DC230V
Standard: :
IEC 60947-5-1, EN 60947-5-1
Speed :
double
Use: :
Universal
Description

Detailed Product Description

Push Button Single Speed Industrial Remote Controls For Hoist And Crane

  • Standard: IEC 60947-5-1, EN 60947-5-1
  • Protection class: IP65 conforming to IEC 60529
  • Electric rating: AC50/60Hz, AC400V/DC230V
  • Enclosure: Material: ABS
  • Color: Yellow; Black is optional
  • Mechanical interlock between 1 group contact
  • Speed: Single speed or double

Remote control, hoist switch, crane switch, crane push button, hoist station, COBP pendant control station, push button for hoist and crane, push button switch for hoist and crane. Pendant crane control station switch

Description:

COBP serried of two-speed lifting equipment to control button box, a combination of the domestic appliances industry technology and user needs combined with foreign industrial crane control to improve the absorption components, focus on the rationalization of mechanical design, reasonable structure, advanced technical performance; the Company and in accordance with market demand for the development of multi-button combinations of control, more fully functional, and electrical control circuit in accordance with the requirements of any button to choose a different combination of features and easier to control the use the equipment.

Models and meaning

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

MAJOR TECHNICAL PARAMETERS(see fig)

BUTTON MARKS.

DIRECTION MARKS

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

DOUBLE SPEED

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Product outside view

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Size parameter

Model

Code

Sets

L x B x H

1

2D2. 655. 031

3

310 x 78 x 85

2

2D2. 655. 032

5

370 x 78 x 85

3

2D2. 655. 033

7

430 x 78 x 85

4

2D2. 655. 034

9

490 x 78 x 85

5

2D2. 655. 035

11

550 x 78 x 85

Functional codes of buttons and electric diagram(see fig)

Function codes of buttons and electric diagram (see fig)

Code

Electric diagram

Feature

Tech parameters

A-power contral
switch

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Self-lock, connect or
separate whirling 30°,auto reset

AC 380V 10(5)A rated V &1
AC 380V 10(5)A
service life one million times

B-tart-stop button

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Two buttons inter lock and auto reset,
normal 10ff separates first and normal-on connects

S-double speed
button

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Two buttons inter lock and auto reset pressed to the first pomtlon normal-off separates and normal-off eonfleets. pressed to the end a later Normal-on connects

P-normal-on-off
button

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Yellow / Black ABS Waterproof IP65 Hoist Pendant Control Crane Remote Control

Two buttons interlock.
Auto reset, single-on-control normal-on=off

　
