320A - 500A High Power insulated Conductor Bar System 660V
320A - 500A High Power insulated Conductor Bar System 660V
320A - 500A High Power insulated Conductor Bar System 660V
320A - 500A High Power insulated Conductor Bar System 660V
Specifications
Brand Name :
NANTE
Model Number :
NSP-H
Certification :
CE
Place of Origin :
CHINA
MOQ :
100m
Payment Terms :
L/C, T/T
Supply Ability :
10000000 Meter/Meters per Year
Delivery Time :
within 10days
Packaging Details :
carton or wooden case
Poles: :
4poles
Current: :
150~3000A
Max. Voltage: :
660V
Standard Length: :
4m
Conductor material: :
Aluminum
Self Extinguishing: :
Class B1-no flaming particles, self-extinguishing
Description

320A To 500A High Power Conductor Rails System

Detailed Product Description
The JDC-H conductor rail system is a modern crane power supply system using single pole insulated conductor bars. It complies with the latest regulations and provides the electric energy for material handling equipments such as overhead cranes.

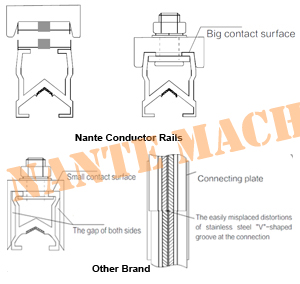

The aluminum shrouded busbar mobile electrification system is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically or horizontally, on straight or curved systems.

  • Standard length; 4m or 6m.
  • Current: 100A~1250A
  • Conductor material: Aluminium, copper
  • Support spacing: 1.8m or 2.0m


Design features

  1. Compact arrangement,
  2. High safety insulation housing, corrosion resistance.
  3. Easy and exact mounting with multiple supporting bracket.
  4. Easy installation.

Housing
The well insulating green plastic housing holds 3-6 conductors. Usually 4m standard length and other length to meet your runway requirements are available. The ground line is identified by the yellow color so that avoiding phase reversing.

Collectors
The current collectors are made of carbon brush, re-inforced nylon and galvanized or spray-paint metal material. Spring loaded carbon brushes maintain uniform contact. Connecting cables and hinged or flexible towing arms included. Double Current collectors for transfer applications and higher amperage are available.

320A - 500A High Power insulated Conductor Bar System 660V

320A - 500A High Power insulated Conductor Bar System 660V
320A To 500A Conductor Rails

Aluminium Conductor

Type Conductor Rail Cross section(mm2) Nominal current(A) Leakage-distance(mm) Resistance(Q/km) Weight kg
NSP-H-230/320 Aluminium 230 320 80 0.153 0.96
NSP-H-285/500 Aluminium 285 500 80 0.116 1.13

NSP-H-

360/630

 Aluminium 360 630 80 0.087 1.38

NSP-H

420/800

 Aluminium 420 800 80 0.067 1.5

Copper Conductor

Type Conductor Rail Cross section(mm2) Nominal current(A) Leakage-distance(mm) Resistance(Q/km) Weight kg
NSP-HT-230/800 Copper 230 800 80 0.067 2.43
NSP-HT-300/1000 Copper 300 1000 80 0.058 3.05
NSP-HT-360/1250 Copper 360 1250 80 0.046 3.56
NSP-HT-450/1600 Copper 450 1600 80 0.039

4.37

Technical data
Conductor Rail system JDC-H Series
Conductor rail Aluminium Copper
Type H24 H32 H35 H52 H24 H32 H52
Nominal current at 100% DC and 35°C [A] 250­300 320­1250 230­800 1250­3000 500­800 800­1600 1250­5000
D.C.resistance at 35°C [Q/km] 0.203­0.187 0.153­0.046 0.153­0.067 0.043­0.015 0.116­0.067 0.067­0.039 0.036­0.007
Impendance at 35C [Q/km] 0.209­0.195 0.155­0.048 0.155­0.069 0.044­0.017 0.118­0.069 0.069­0.04 0.038­0.008
Support spacing [m] 1.5 1.8 1.8 2 1.5 1.8 2
Rail length [m] 6 6 6 6 6 6 6
Housing length [m] 5.88 5.83 5.83 5.75 5.88 5.83 5.75
Max.voltage [V] 660V Dielectric strength [KV/mm] 30-40
Travelling speed 600 m/min standard GB7251.2-2006
Expansion joint not required uo to 200 m installation length
Flame retardant Class B1-no flaming particles,self-extinguishing
Permissible ambient temperature Standard insulation -20C- +70C
High temperature insulation -10C- +115C
Low temperature insulation -40C- +85C

320A - 500A High Power insulated Conductor Bar System 660V
