3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed
3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed
3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed
3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed
Specifications
Brand Name :
NANTE
Model Number :
ASF
Certification :
Certification
Place of Origin :
CHINA
MOQ :
1pc
Supply Ability :
1000000 pcs per year
Delivery Time :
1-2 weeks
Packaging Details :
CARTON
Wheels :
Ball bearing
Max. Travel Speed :
160m/min
Material :
Galvanized Steel+ABS
Temperature :
-30℃~+100℃
Max.cable load :
max.35 kg/trolley
Type :
ASF
Description

Application

Angle systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. Angle steel are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

Design features:

Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

Detailed Product Description

Angle Steel Trolley festoon system, Galvanized Steel Angle and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

Angle steel trolley applied to light mobile power supply device, with a quick isntallation, low cost, long life, stable operation and other characteristics.

The angle steel system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Technical Parameters

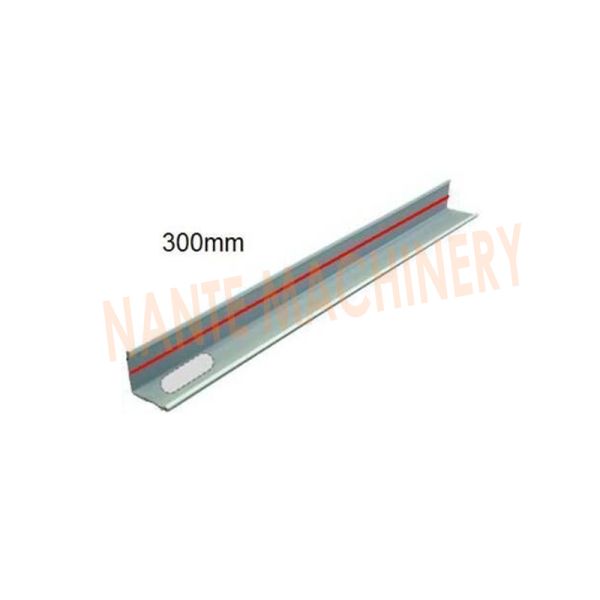

Angle Steel

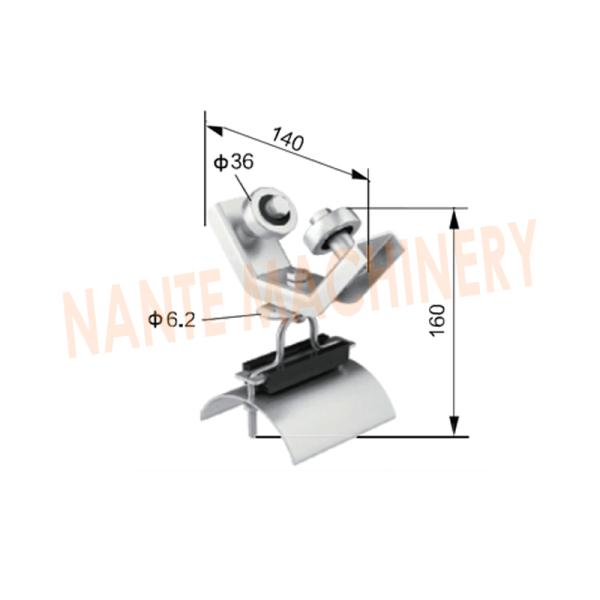

Trolleys for flat cable

3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

Type ASF-40(flat cable)
Wheels Ball bearings, hardened, galvanized
Temperature resistance Lub. grease of wheels: -30°C-- +100°C
Travelling speed: ca. 160 m/min.
Material Carrier body: steel, galvanized
Support saddle: steel, galvanized
Bumper: Neoprene
Dowel:steel, galvanized
Hardware: galvanized
Max. cable load max.30KG
Dim. of Cable (mm) max.75 Wx32δ
Weight(kg) 0.67

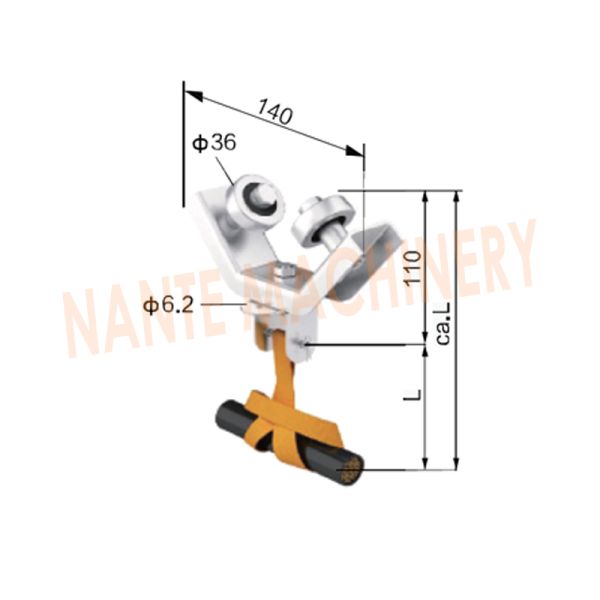

Trolleys for round cable

3 Kinds Of Ball Bearing ABS Middle Festoon Cable Trolley 300 m / min Travel Speed

Type ASR-40(round cable)
Wheels Ball bearings, hardened, galvanized
Temperature resistance Lub. grease of wheels: -30°C-- +100°C
Travelling speed: ca. 160 m/min.
Material Carrier body: steel, galvanized
Clamp : steel, galvanized
Sling: Nylon
Dowel: Brass or steel, galvanized
Max. cable load 30KG/max. 30 KG per carrier
Dim. of Cable (mm) max.D=dia.50mm/D=dia.80mm/D=dia.160mm
Weight(kg) 0.48
