Specifications
Brand Name :
NANTE
Model Number :
cd
Certification :
CE, ISO9001:2000
Place of Origin :
CHINA
MOQ :
1SET
Price :
US $700-1,200/ set
Payment Terms :
L/C, T/T
Supply Ability :
10000 Sets Per Year
Delivery Time :
15 DAYS
Packaging Details :
PLYWOOD
Model NO. :
CD/MD
Capacity :
2t
Lifting Power :
8/0.8kw
IP Class :
IP44, IP54
Traveling Speed :
20m
Description

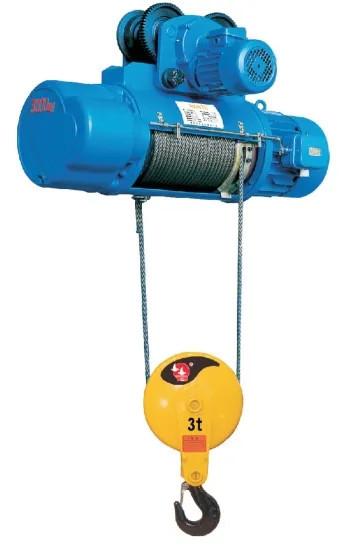

CD1 MD1 Electric Wire Rope Hoist for Overhead Crane

Detailed Product Description
A wire rope hoist is a hoist that utilizes wire rope as the lifting medium. It is often powered electrically or pneumatically. This lifting device is made up of a rope storage drum, motor(s), gear box and braking system, and is suspended from a monorail or bridge beam(s) by means of a trolley. It may also be stationery mounted.



A crane is a machine used for lifting and lowering a load, and moving it horizontally. A crane's drives may be manual, powered or a combination of both. Cranes are typically used when there is insufficient (or intermittent) flow volume such that the use of a conveyor cannot be justified. They provide more flexibility in movement than conveyors, and less flexibility in movement than industrial trucks. Loads handled by cranes are more varied with respect to their shape and weight than those handled by a conveyor. Most cranes utilize hoists for vertical movement, although manipulators can be used if precise positioning of the load is required.

Many different types of cranes are used for material handling applications. These include overhead cranes as well as cherry picker type boom lifts, mobile and self-propelled cranes, straddle and counterbalanced (cantilevered) cranes. Portable and mobile floor cranes can be equipped with fixed or telescopic booms as well as mast rotation when equipped with outriggers. Lifting can be performed with the boom itself or a winch operated cable lift.

Type Capacity
(t)		 Classifi-
cation		 Lifting
Standard(m)		 Lifting Speed
(m/min)		 Traveling
speed
(m/min)		 Rope
reeving		 Lifting Motor
type power(kw)		 Travelling Motor
type
power(kw)
(suspended type)		 protection
class		 I-beam
Track
(mm)		 Min
Turning
Radius		 N. W
(kg)

Cd1
Md1




























Cd1
Md1

































 0.5 M3 6 8
8/0.8		 20
20/6.7
30
30/10		 2/1 ZDY11-4(0.8)
ZDS1-0.2/0.8
(0.2/0.8)		 ZDY11-4
(0.2)		 IP44
IP54		 88-124 1 135
9 1 140
12 1 155
18 1.8 175
24 2.5 185
30 3.2 195
1 M3 6 8
8/0.8		 20
20/6.7
30
30/10		 2/1 ZD22-4(1.5)
ZDS1-0.2/1.5
(0.2/1.5)		 ZDY11-4
(0.2)		 IP44
IP54		 88-124 1 180
9 1 190
12 1.2 205
18 1.8 220
24 2.5 235
30 3.2 255
2 M3 6 8
8/0.8		 20
20/6.7
30
30/10		 2/1 ZD31-4(3)
ZDS1-0.4/3
(0.4/3)		 ZDY12-4
(0.4)		 IP44
IP54		 100-152 1.2 250
9 1.2 265
12 1.5 300
18 2 320
24 2.8 340
30 3.5 360
3 M3 6 8
8/0.8		 20
20/6.7
30
30/10		 2/1 ZD32-4(4.5)
ZDS1-0.4/4.5
(0.4/4.5)		 ZDY12-4
(0.4)		 IP44
IP54		 100-152 1.2 320
9 1.2 340
12 1.5 350
18 2 380
24 2.8 410
30 3.5 440
(Cd1
YMD1Y)		 5 M3 6 8
8/0.8		 20
20/6.7
30
30/10		 2/1 ZD41-4(7.5)
ZDS1-0.8/7.5
(0.8/7.5)
ZD51-4
(13)		 ZDY21-4
(0.8)		 IP44
IP54		 116-180 1.5 590
9 1.5 630
12 1.5 650
18 2.5 700
24 3 750
30 4 800
10 M3 6 7
7/0.7		 20
20/6.7
30
30/10		 4/2 ZDS1-1.5/13 2xZDY21-4
(0.8)		 IP44
IP54		 142-180 1.5 820
9 1.5 875
12 1.5 960
18 2.5 1015
24 3 1090
30 4 1125
16 M3 6 3.5
3.5/0.35		 20
20/6.7
30
30/10		 4/1 ZD51-1.5
13
ZDS13/1.5
13/1.5		 2xZDY21-4
(2x0.8)		 IP44
IP54		 150-178 3 700
9 3.5 750
12 3.8 850
15 4 850
20 M3 6 3.5
3.5/0.35		 20
20/6.7
30
30/10		 4/1 ZD51-1.5
13
ZDS13/1.5
13/1.5		 2xZDY21-4
(2x0.8)		 IP44
IP54		 158-178 3 720
9 3.5 770
12 3.8 870
15 4 880
