Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
Specifications
Brand Name :
NANTE
Model Number :
HFP52
Certification :
ISO
Place of Origin :
CHINA
MOQ :
20M
Price :
9-12USD/M
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000m/week
Delivery Time :
7 days

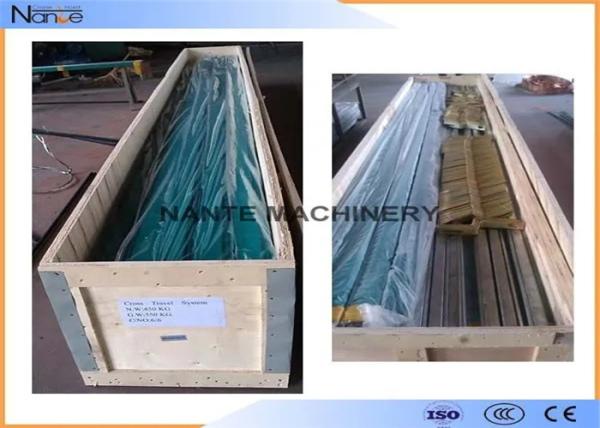

Packaging Details :
Wooden Case
Model NO. :
HFP52
HS Code :
8544492900
Max.Current: :
50A-140A
Max.Voltage: :
600V
Transport Package :
Iron Frame Box, Wooden Case, Naked
Port: :
NINGBO
Description

Specifications

Wampfler Boxline 0842 type, Multiple Enclosed conductors, typically copper strips, For indoor and outdoor plants.
CCC, ISO, CE

Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail

NANTE HFP56 series is similar with Wampfler Boxline 0842
The powerail type HFP56 are totally enclosed touch-proff conductor systems for safe mobile power feeding of overhead crane, monorail systems, electirc hoist and so on.

Wampfler Boxline 0842, Conductor Rail, Powerails, Conductor Bar, Bus Bar, DSL System, Conductor Trolley Bar, IGS

Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail

Detailed Product Description
These systems feature multiple conductors, typically copper strips, in an insulated enclosure. The current collector tracks are inside the enclosure, with the joining electric cable connected via an opening (slot) in the bottom of the enclosure. The bottom opening can be sealed with a neoprene sealing strip to keep debris and fumes out. The current collector is self-guided in these systems and only needs to be towed with a towing arm. Multiple copper conductors in an enclosure (aluminium or PVC housing) is available in 3 to 16 conductors and amperage capacities from 30 to 240.
Enclosed conductor rails has been used successfully for many years and have been continuously improved and adapted in line with the latest state-of-the-art products. They are conductor lines in a rigid PVC housing with different copper cross sections for rated currents of 40-200 A. The current collectors, running in ball bearings, are guided by the housing. The mains power is transferred by spring-stored carbon brushes.

Durable HFP Series Type Overhead Crane Components Enclosed Conductor Rail
