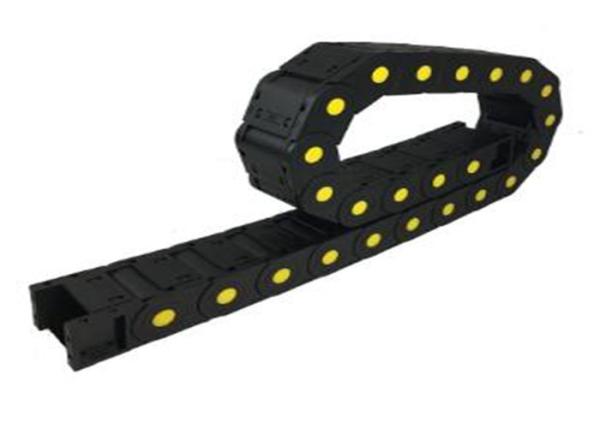

18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems
18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems
18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems
18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems
Specifications
Brand Name :
nante
Model Number :
Energy Chain system
Place of Origin :
China
MOQ :
1
Price :
10-20usd
Delivery Time :
15 days
Packaging Details :
1. Carton box: 60*60*30cm ,80*80*30cm 2. PLY-Wooden case: per size 3. Pallet: PLY-Wooden pallet or Metal pallet
Description

18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems

Flexible tray chain wire carrier cable tracks

1) towline shape tank chain, composed of a large number of unit links, links freely rotate between.
(2) The same series of towline within the high, outer high, the same pitch, towline wide, bending radius R may have different options.
(3) The unit link is composed of left and right link plates and upper and lower cover plates. Each section of the towline chain can be opened and disassembled and disassembled conveniently without threading. After opening the cover plate, cables, tubing, trachea and water pipes can be put into the towline .
(4) Another separator can be provided to separate the space within the chain as needed.

Type
Inner H*W
Outer H*W
Stype
Bending diameter(R)
Pitch
Unsupported leght
KQ20*25
20*25
35*48
Bridge type Top and bottom lids can be opened
55.75
47
1.5meters
KQ20*38
20*38
35*61
KQ20*50
20*50
35*73
KQ20*57
20*57
35*80
KQ20*65
20*65
35*88
KQ20*70
20*70
35*93
KQ20*75
20*75
35*98
KQ20*100
20*100
35*123
KQ20*103
20*103
35*126
KF2O*38
20*38
35*61
Totally enclosed TOP and bottom lids can be opened
KF20*50
20*50
35*73
KF20*57
20*57
35*80
KF20*75
20*75
35*98

18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems

18x18 Gantry Crane Components Cable Tracker Drag Chain Carrier Energy Systems

plastic cable chain

(1) The fuel tank chain in the shape of a towline is composed of a large number of unit links, and the links can be freely rotated.
(2) The same series of towline height, outer height, same pitch, drag chain width, bending radius R can have different choices.
(3) The unit connecting rod is composed of left and right link plates and upper and lower cover plates. Each part of the chain can be easily opened and removed and removed without threading. Cables, pipes, air pipes and water pipes can be placed in the chain after the cover is opened.
(4) Another separator can be provided to separate the space within the chain as needed.
