Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck
Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck
Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck
Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck
Specifications
Brand Name :
OUCO
Model Number :
OUCO-1T10M-KBT-01
Certification :
ABS/BV/CCS
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
300 units per year
Delivery Time :
20 days
Packaging Details :
Shipping Container/Wood Crate/nude
Material :
steel
Color :
Custom
Hydraulic :
Hydraulic system
size :
custom
package :
Nude
grade :
marine / offshore
quality :
one year warranty
Description

Marine Folding Boom Offshore Hydraulic Crane 1t lifting Crane for Vessel Deck

The crane is installed with a rolled steel pedestal for bolting or welding to deck with a height of 1200mm and pedestal diameter is depend on the SWL of the crane. The standard TB crane will supply with an operator platform. Operator cabin is optional.
Technical Specifications:
SWL 1T@10M
MAX WORKING RADIUS 10m
MIN WORKING RADIUS 2m
HOISTING SPEED 0~15m/min
HOISTING HEIGHT 25m
SLEWING SPEED ~0.5r/min
SLEWING ANGLE 360°
LUFFING TIME ~ 45s
EXTENSION TIME ~45s
WORKING CONDITION

TRIM ≤2°

HEEL ≤5°
ELEC-MOTOR POWER Y160K-4-H
POWER 11kw
Speed 1475r/min
POWER RESOURCE AC415V/50HZ
PROTECT CLASS IP56
INSUKATE CLASS F
WORKING TYPE S1

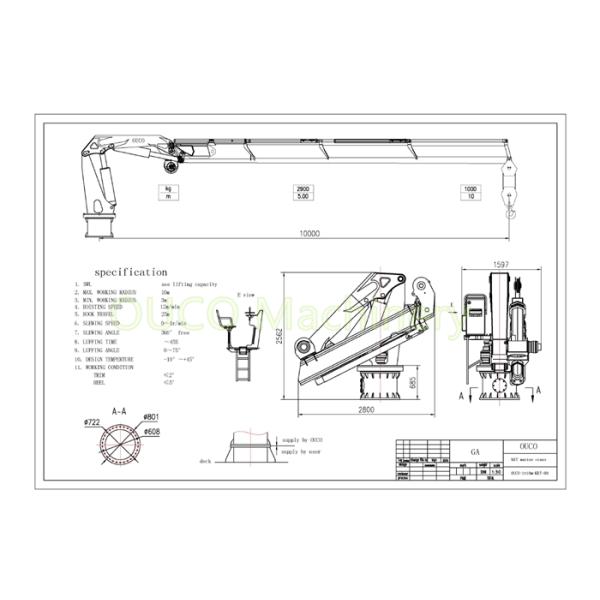

General Arrangement Drawing:

Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck

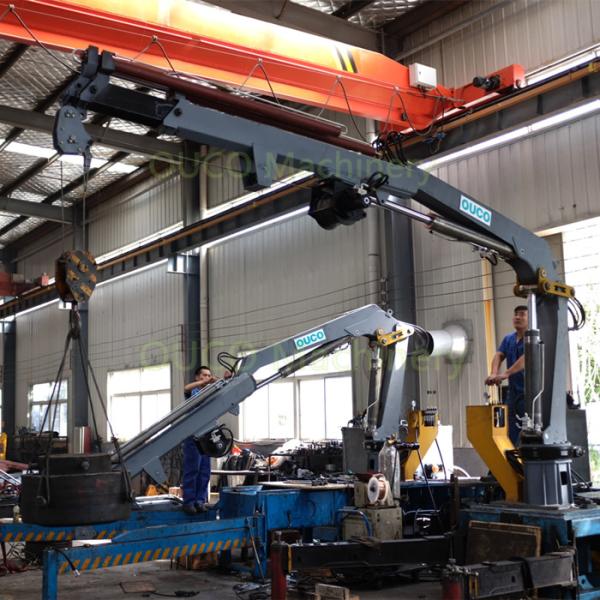

Load test at workshop:
Offshore Folding Boom 1t Crane Grab Bucket For Vessel Deck
