4T14M Knuckle and Foldable Boom Marine Crane

Product Description:

The OUCO 4T14M Knuckle and Foldable Boom Marine Crane represent a sophisticated solution for maritime lifting operations, particularly in environments where space optimization is paramount.

Engineered for versatility, this crane features an innovative articulated boom design, enabling both extensive operational reach and compact storage. This design is specifically tailored for vessels with constrained deck areas, including but not limited to, fishing vessels, harbor tugs, and specialized engineering craft.

Its application spans a broad spectrum of tasks, from critical lifeboat deployment to the efficient handling of logistical supplies and execution of precision tasks under challenging marine conditions.

Product Features:

Key advantages of the 4T14M crane include its spatial efficiency, achieved through the foldable knuckle boom configuration, thereby maximizing available deck space. The system's multi-axial operational capability, facilitated by synchronized hydraulic cylinder control, allows for precise positioning in complex sea states, complemented by a full 360-degree rotation.

Operational efficiency is further enhanced by the wireless remote control system, enabling remote command and control. The crane is well-suited for heavy-duty applications with a safe working load of 4 tons across a 2m to 14m radius. Robust performance is ensured through its wide operational temperature range, advanced wave compensation, and structural integrity capable of withstanding severe environmental conditions.

Integrated safety systems, including overload protection, power failure safeguards, and real-time monitoring, guarantee operational reliability. Constructed from high-strength, corrosion-resistant materials and featuring a sealed hydraulic system, the crane is designed for prolonged service life with minimal maintenance requirements.

Parameters

Product Parameters

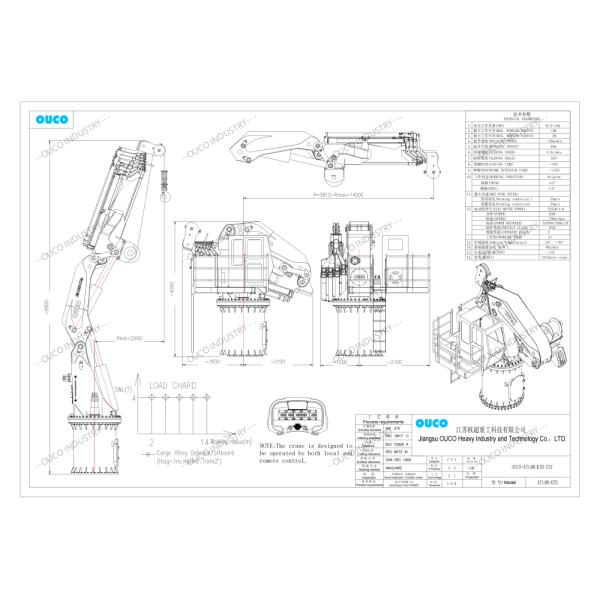

GA Drawing

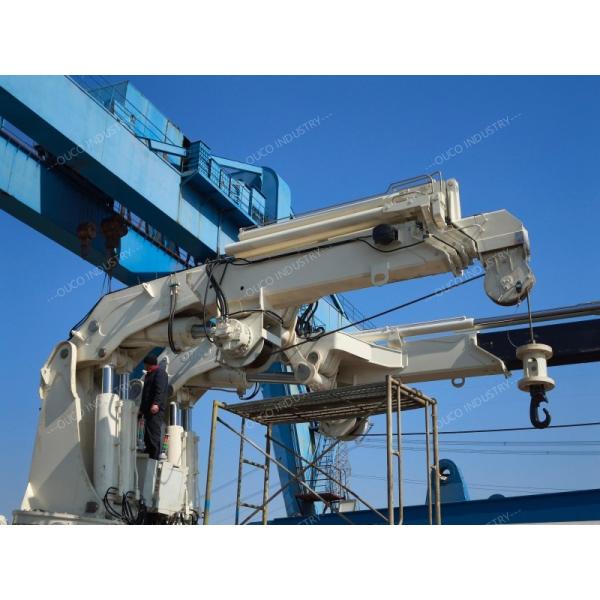

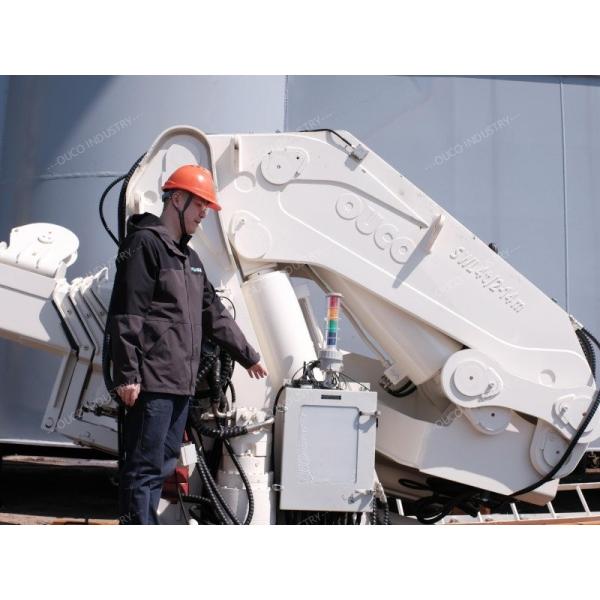

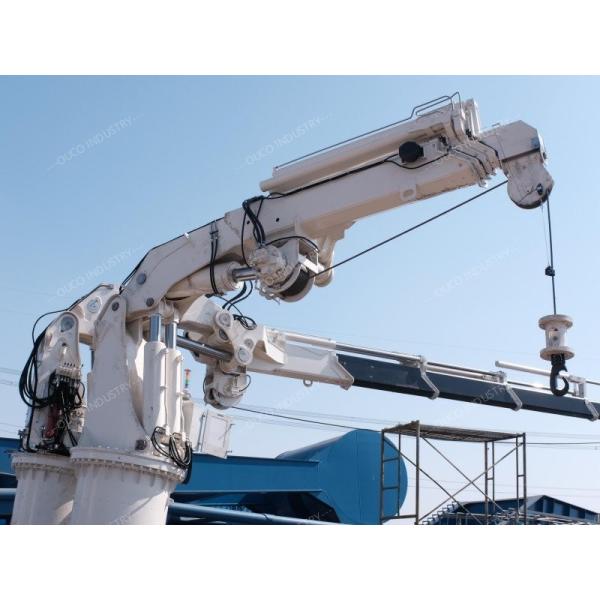

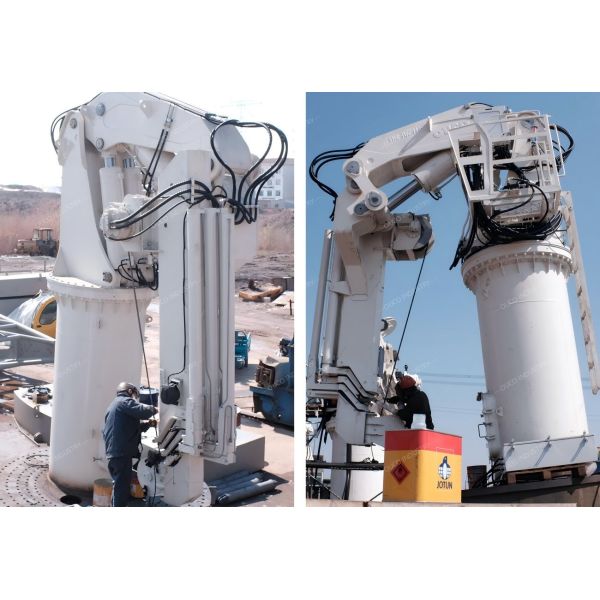

Product Picture
