DXZ Slewing Limit Switch With Potentiometer For Load Moment Indicator Sensor
DXZ Slewing Limit Switch With Potentiometer For Load Moment Indicator Sensor
DXZ Slewing Limit Switch With Potentiometer For Load Moment Indicator Sensor
DXZ Slewing Limit Switch With Potentiometer For Load Moment Indicator Sensor
Specifications
Model Number :
DXZ
Certification :
ISO, 3C, CE
Place of Origin :
CHINA
MOQ :
10
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 pcs/day
Delivery Time :
7-10 days
Packaging Details :
Carton
Name :
Slewing Limiter
Transmission ratio :
1:13 ~ 1:960
Operation Temperature :
-25 ℃ ~ + 40 ℃
Operation humidity :
≤90%
Rated voltage :
AC 24V ~ 250V DC 24V ~ 220V
Rated current :
0.4A ~ 6A
IP level :
IP55
Warranty :
6 Months
Price :
Negotiable
Description

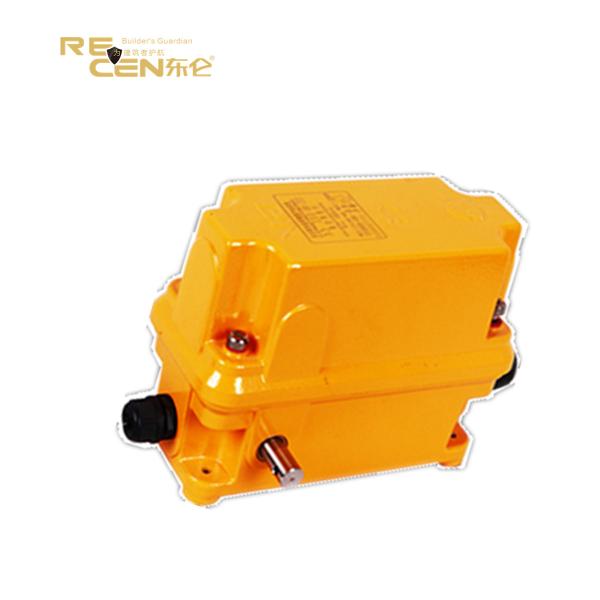

Slewing Limit Switch With Potentiometer For Load Moment Indicator Sensor

Function

Use DXZ limit switch to limit the rotating angle of tower crane to avoid power cables damaged by over twist.

Working principle

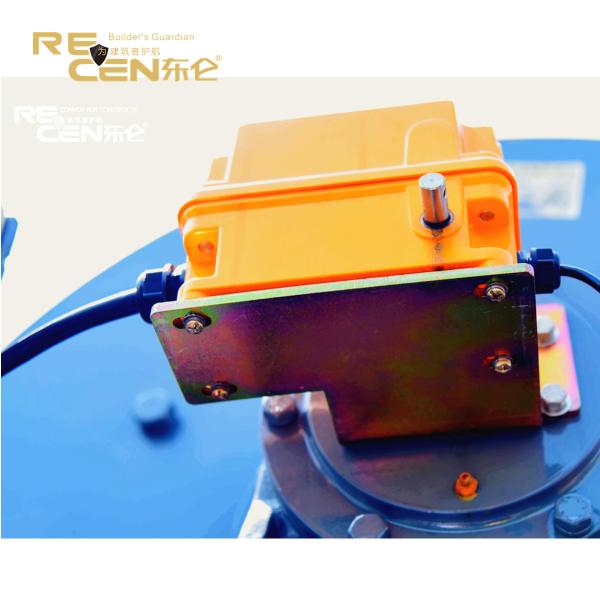

Pinion on DXZ limit input shaft is engaged with slewing ring, DXZ limit switch records the rotating angle of crane. When the crane rotates to its slewing limit angle, relative contact of limit switch change over with the help of corresponding cam, then slewing movement is stopped

Adjusting

Turn the tower crane to its original direction of jib, with this direction there is no twist of power cables.

a. Adjusting should be performed with no load on the tower crane. Before adjusting, press down the contacts(WK) by finger to check which one is for left control and which one is for right

b Clockwise to 540(1. 5 times), according to the 3. 2. I program and adjust the adjusting shaft(4Z), Press the cam(4T) down the micro switch (4WK) to switch it instantaneously, then tighten the M5 nut

c. Turn counterclockwise 1080(3 laps), press the 3. 2. 1 pro-gram, and adjust the adjusting shaft(1Z)so that the cam(1T)presses down the micros witch (1WK)to make it instantaneously switched and then tighten the M5 nut

d. Verification: turn the crane left/right to verify if the setting of slewing limit switch is correct

Parameter

Working Temperature -25 ℃ ~ + 40 ℃
Working humidity ≤90%
Transmission ratio i 1:13 ~ 960
Repeat positioning accuracy The transfer error of the memory cam ≤0.3 °
Rated voltage AC 24V ~ 250V DC 24V ~ 220V
Rated current 0.4A ~ 6A
Control circuit

1 ~ 4 for standard circuits, can be increased

to 5 ~ 6 according to users
IP level IP55
