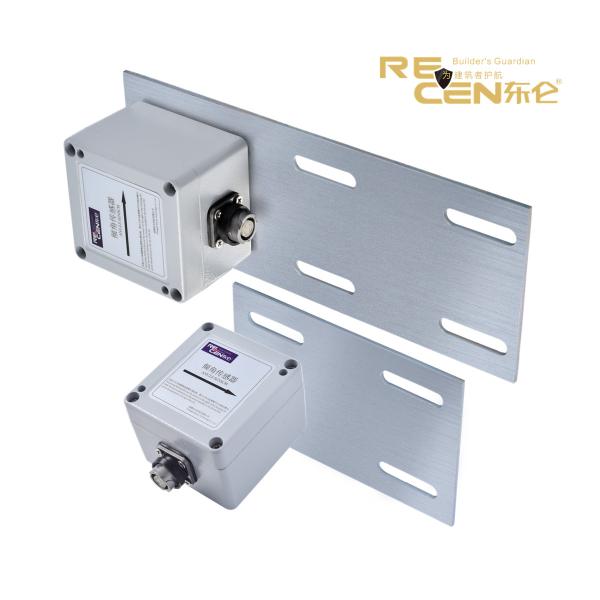

Angle Sensor Tower Crane Anti Collision System Lifting Boom ESD Protection
Angle Sensor Tower Crane Anti Collision System Lifting Boom ESD Protection
Specifications
Model Number :
EAS
Certification :
ISO
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 pcs/day
Delivery Time :
7-10 days
Packaging Details :
Carton
Name :
Angle sensor
Voltage :
DC12 ~ 24 V (typical 12V)
Working current :
35 mA
Weight :
350g (net weight, excluding cables)
Size :
80mm × 75mm × 57mm
Warranty :
6 Months
Price :
Negotiable
Description

Angle Sensor For Luffing Tower Crane Anti-Collision Lifting Boom

Features

  • Have a variety of optional digital interfaces: TTL / RS232 / RS485 / CAN2.0B;
  • Can choose to have dual-channel analog voltage (typical value: 0 ~ 5V) / current (typical: 4 ~ 20MA) output.
  • With perfect reverse connection protection, TVS, ESD protection, it can adapt to various complex environments;
  • Wide temperature range -40 ~ + 85 degrees Celsius, full range temperature compensation, with high and low temperature alarm;
  • Very low power consumption (12V, 35MA), high accuracy (0.05 °), high cost performance, easy to integrate.

Parameter

Measuring range ± 15 / ± 30 / ± 90 degrees
Accuracy ± 0.05 degrees (± 30 ° range, 24 ° C); ± 0.15 degrees (± 90 ° range, 24 ° C)
Repeatability 0.01 °
Resolution 0.01 °
Response frequency 50 Hz (default 10Hz, maximum 50Hz)
Zero temperature drift ± 0.01 ° / ℃ (-45 ~ 85 ℃)
Voltage (DC) 12 ~ 24 V (typical 12V)
Working current 35 mA (voltage 12V, continuous output mode)
Analog output 0 ~ 3.0 (optional) V (4-20mA, 0-20mA, 0-24mA current; 0-5V, 0-10V, ± 5V, ± 10V voltage)
Operating temperature -40 ~ 85 ℃
Storage temperature -55 ~ 125 ℃
Weight 350g (net weight, excluding cables)
Size 80mm × 75mm × 57mm
Vibration 11 G
Shock 40 G
Protection level IP65
Average trouble-free working time > 30000 hours
Electromagnetic compatibility EN61000 and GBT17626
