Specifications
Model Number :
ZLP630
Certification :
CE, EAC
Place of Origin :
China-Wuxi
MOQ :
5
Payment Terms :
T/T, L/C, Western Union
Delivery Time :
15-20 days
Packaging Details :
Container
Voltage :
220V/380V/415V
Rated load :
630kg,630kg/ 800kg/ 1000kg
Color :
Customized,Blue,silver or customized,Yellow,as your require
Lifting speed :
9.6m/min
Hoist Power :
1.5kwX2
Usage :
High Rise Building Maintaining Work,decoration,Electrical work gondola Equipment,cleaning of high rise building,exterior constructin
Material :
Steel,Aluminum Alloy,Hot galvanized zinc
Warranty :
the whole suspended platform for one year
Price :
Negotiable
Description

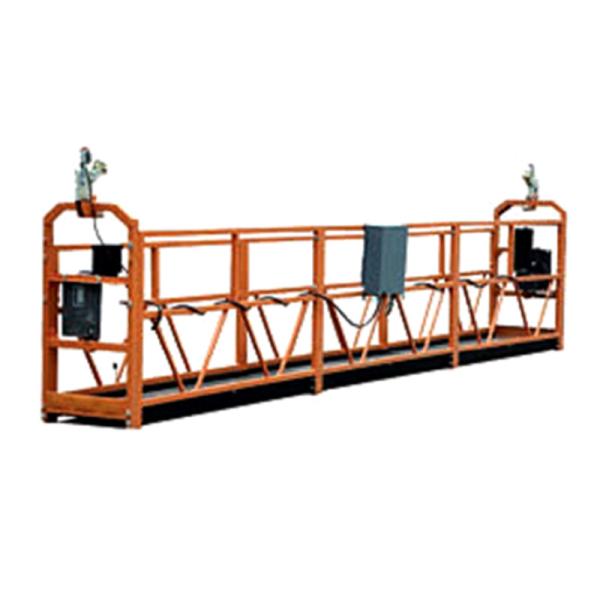

Suspended platform parameters ZLP630
# Parameters Specifications
1 Platform external dimensions 6000*690*1180mm
2 Platform inner dimensions
(length of each configuration)		 6000*610*1180mm
3 workload/capacity 630kg
4 single point capacity 174kg
5 Lifting speed 9.6m/min
6 Platform material steel
7 floor panel thickness 2.75mm
8 Side balustrade and mounting frame
hoist sizes		 40*50*2mm
9 Platform type of painting Steel with hot dipping zinc
10 steel rope surface treatment dipping zinc
11 parameters 4*31SW+FC-8.3mm
12 Cable Brand CORES
13 Hoist hoist surface powder spraying
14 body material aluminium
15 Rated lifting force 8
16 Motor brand, model YEJ90L-4
17 Motor power 1.5KW*2
18 Motor Voltage,
quantity of phases		 380V 50HZ 3 phase
19 Speed 9.6m/min
20 Brake force moment, Nm 1420 r/min
21 Safety lock brand, configuration LST30
22 surface type Metal galvanized
23 Allowable impulsive force (kN) 30KN
24 Locking cable distance 100m
25 Cable blocking angle 3-8 degree

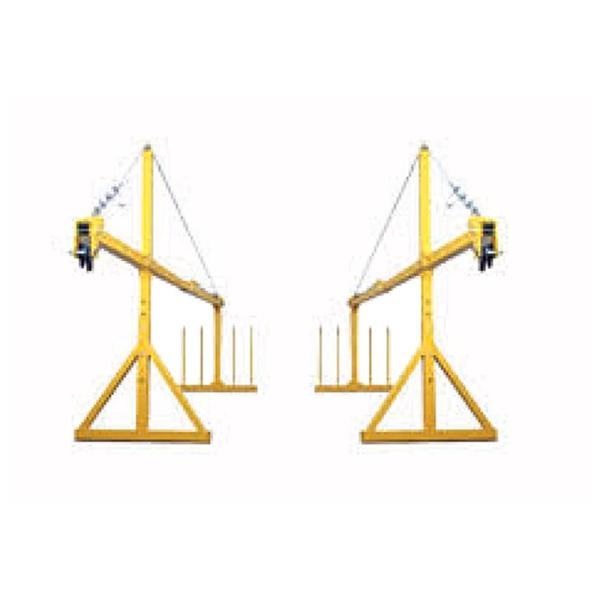

26 Suspension mechanism surface hot dipping galvanized
27 front beam overhang (m) 0.8m-1.7m
28 Adjustable height (m) 1.3-1.8m
29 front beam dimensions(cm) 80*80*4mm (2.3m)
30 middle beam dimensions(cm) 70*70*4mm( 2m)
31 back beam dimensions(cm) 80*80*4mm (2.3m)
32 steel type Q235
33 Counter weight zine plate cover type (inside concrete)
34 Electric control panel brand WUXI (Schneider contactor)
35 thickness 2mm
36 install frame normal type
CE EAC Certificate availability available
Net/ gross weight 1780kg
Production time 10-15 days
Quantity in container 40HQ 14 sets
Quantity in container 20GP 9 sets

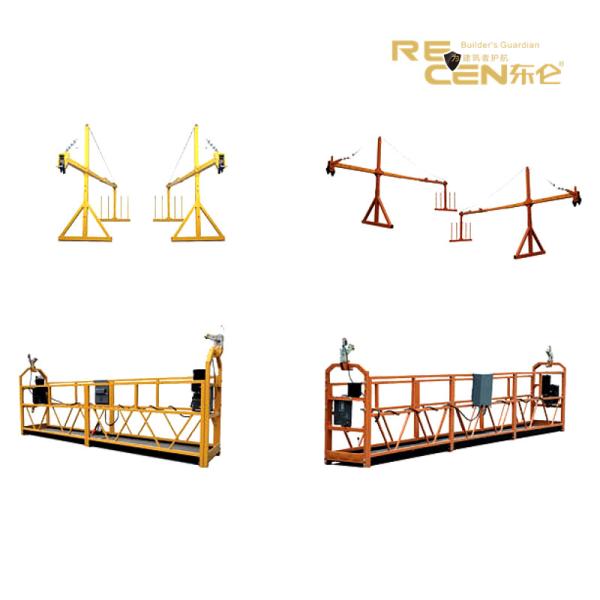

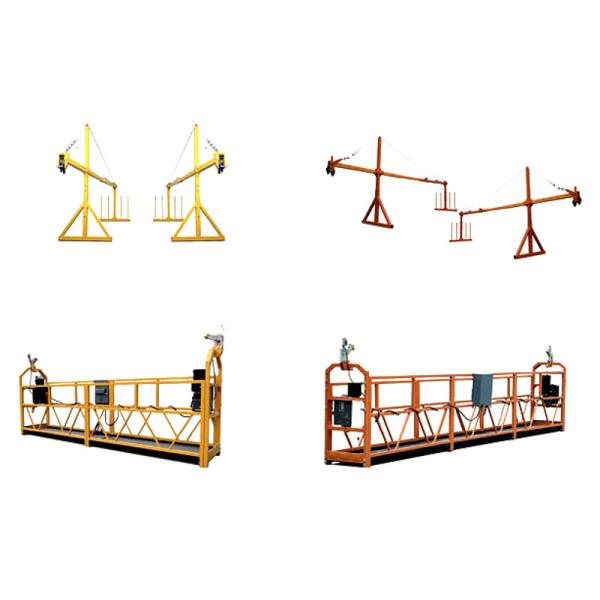

  • Avaliable in 3 Types: - Steel - Aluminum alloy - Galvanized Steel

​

  • Other Model

Model ZLP630 ZLP630 ZLP630 ZLP630 ZLP630 ZLP800 ZLP1000
Height 100m
Rated Load(kg) 630 630 630 630 630 800 1000
Length of Platform(m) 1 2 3 5 6 7.5 7.5/10
Safety Lock Type LST30 LST30 LST30 LST30 LST30 LST30 LST30
Hoist Model LTD6.3 LTD6.3 LTD6.3 LTD6.3 LTD6.3 LTD8.0 LTD10.0
Volum(m3) 1.9 2.1 2.3 2.8 2.9 3.2 3.6/4.0
20" container 20 16 12 10 10 9 8
Counter Weight 25x16pcs 25x16pcs 25x24pcs 25x32pcs 25x36pcs 25x40pcs 25x44pcs
Dia. of Steel Rope (min) 8.3 8.3 8.3 8.3 8.3 8.6 9.1
Voltage(V) 380 380 380 380 380 380 380

Weight

(kg)

 (Aluminium Alloy) 1140 1170 1400 1650 1750 1930 2250
(Steel) 1170 1220 1500 1740 1890 2100 2560/2670
(Galvanized Steel) 1170 1220 1500 1740 1890 2100 2560/2670
