50mm 7 Ton Tower Crane Load Moment Indicator Spare Parts Weight Shaft 55mm 60mm
50mm 7 Ton Tower Crane Load Moment Indicator Spare Parts Weight Shaft 55mm 60mm
50mm 7 Ton Tower Crane Load Moment Indicator Spare Parts Weight Shaft 55mm 60mm
50mm 7 Ton Tower Crane Load Moment Indicator Spare Parts Weight Shaft 55mm 60mm
Specifications
Place of Origin :
CHINA
MOQ :
2
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10 pcs/day
Delivery Time :
15-20 days
Packaging Details :
Carton
Diameter :
50mm
Rated Load :
7 ton
Output :
0.5-5V
Temperature compensation range :
﹣10 ℃ ~ 90 ℃
Working temperature range :
﹣20 ℃Working temperature range ~ 75 ℃
Cable :
Three-core shielded cable, 20m
Warranty :
6 Month
Price :
Negotiable
Description

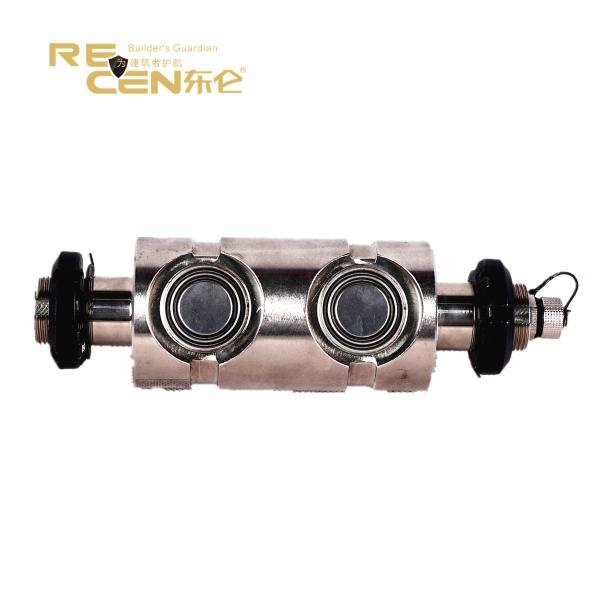

50mm Load Cell 7 Ton Load Moment Indicator Spare Parts Weight Shaft 55mm 60mm

Description

The load cell pin can be used for static or dynamic force measurement, and it is widely used in many fields. For example: Replace the original pulley shaft with Load cell when carrying out load measurement on the wire rope pulley.

When measuring the pressure on the steel structure, the load cell is used as an indispensable connector.

When measuring the force on the hydraulic cylinder, the load cell is used as a fixed shaft.

Parameter

1 Rated load 7ton (customization avaible)
2 Output 0.5-5V
3 Zero balance ± 1% F.S
4 Comprehensive error ± 0.5% F.S
5 Creep (30 minutes) ± 0.1% F.S
6 Effect of 0° ± 0.1% F.S / 10 ℃
7 Sensitivity temperature effect ± 0.1% F.S / 10 ℃
8 Temperature compensation range ﹣10 ℃ ~ 90 ℃
9 Working temperature range ﹣20 ℃ ~ 75 ℃
10 Safe overload 150% F.S
11 Connector M12X1 waterproof aviation connector
12 Insulation resistance ≥2000MΩ (50V DC)
13 Excitation voltage 12V DC
14 Cable Three-core shielded cable, 20m
15 Wiring definition

1 Red wire (positive power supply),

2 Green wire (positive signal),

3 Black wire (negative power supply),

4 Shielding
16 Material 40Cr
17 Sealing grade IP67
18 Accessories

Nuts, brake pads, barrier sleeves are provided

according to the needs
