OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
OMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
Specifications
Brand Name :
SUMIT, ANT,UTING
Model Number :
OMS-370C
Certification :
CE
Place of Origin :
NINGBO CITY, CHINA
MOQ :
20pcs
Price :
USD42-65/PC
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000-10000pcs
Delivery Time :
approx3-5 working days depending on the qty
Packaging Details :
box+carton, 20pcs/carton, size:38X26X32cm/carton
Voltage :
18-65V/65-440V
Load cell entry number :
2pcs
Alarm relay :
1 pcs output
Material :
ABS
Description

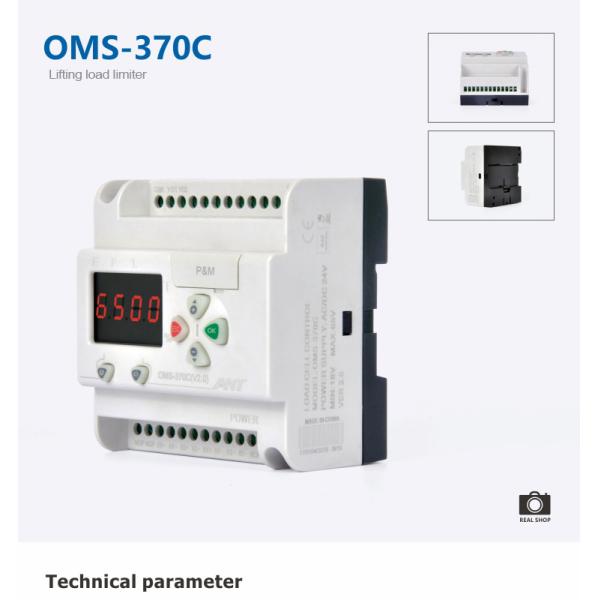

SUMIT OMS-370C crane and wire rope hoist overload safety protection load limit switch and LED display economic overload controller

Description:
The lifting load limiter OMS-370C is designed for the crane and electric hoist overload lifting protection, or other lfiting equipment such as overhead travelling cranes,hoists, elevators, etc.
It can be connected on any weight detecting sited in: fixed spur, turn pulley, carrier, cable, etc. Optionally it has an output for weight booster (on pannel of push buttons),easily calibrate the system

Feature:

1. DIN rail-mounted, easy mounting

2. Wide range voltage input, more stable and flexible

3. RS485 connection, and easy connect with LED scoreboard

4. 2 entry of weighing load cells

5. Compatible with all load weighing sensors manufactured by ANT,SUMMIT

6. With load cells, it constitutes the complete load limiter

Control Unit model: OMS-370C
Operation Voltage: AC/DC18-48V Display mode: Weight/percentage
Nominal power: ≤4W Key number: 6
Entry qty of load cells 2 pcs Measuring precision: 0.1%
Relay Number: 1(overload,NO/NC) Operation temperature: -45-+85degree
Contact Load: 5A 250VAC/5A 30VDC Sensor operation voltage: Max DC15V
Display Type: 4 digits 0.36 inch LED display External screen External big LED screen (optional)
Connection terminals type for load cell Compatible with 4-core bank wire

OMS-370C Crane Load Limiter Overload Safety Protection Overload ControllerOMS-370C Crane Load Limiter Overload Safety Protection Overload Controller
