Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
Specifications
Brand Name :
SUMMIT
Model Number :
F21-2S(WD)
Certification :
CE
Place of Origin :
NINGBO CITY, CHINA
MOQ :
MOQ:50pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000-10000pcs/month
Delivery Time :
1-4 weeks depending on the quantity
Packaging Details :
Box+carton, 12pcs/carton, 11kg/carton, carton size: 38x21.5x32cm
Product name :
micro electric hoist remote control
Voltage :
AC110-120V
Speed :
1 steep
motions :
up and down
Description

SUMMIT 110V F21-2S(WD) 2 single speed push buttons micro eletric hoist winch wireless remote control switch lifting gate hydraulic pump trailer dump remote control switch

Mini electric wire hoist industrial remote control

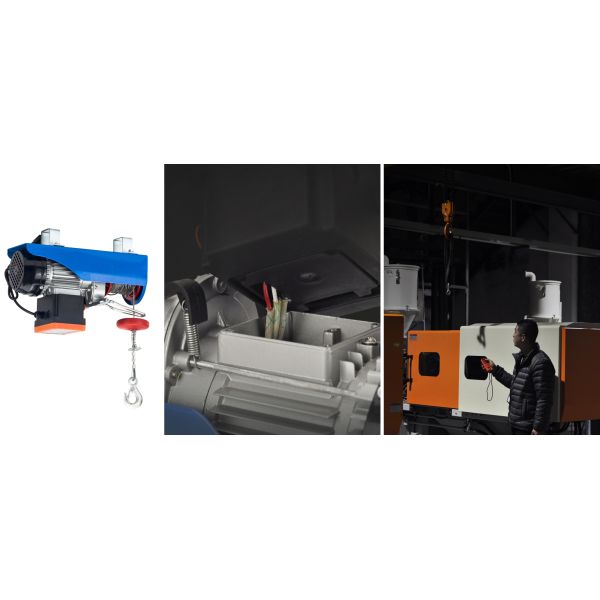

Application: particularly for Single-phase electric hoist less than 1T

The remote control F20-2S and F21-2S-WD is portable, easy and cost-effective, and it is designed particularly for the mini micro electric hoist for PA series BADA brand mini electric hoist ,such as PA100, PA200 PA300 PA400 PA500 PA600 PA800 PA1000. It is suitable for DIY market and is also the ideal equipment for hotels,shops, repairing, material handling, industrial assembly lines and large industrial equipment.

Features:

1. ID code remote pairing

2. Safety features

3. 2 Control contacts

4. With battery voltage warning device, the power supply will cut off during low power.

5. Safety key switch is to prevent from the unauthorized user.

6. Program the button function by computer interface.

7. UP/Down can be programmed to interlock or non-interlock.

Technical Parameters:

Transmitter parameters:F21-2S-WD TX
Material Glass-Fiber PA
Enclosure protection class IP65
Frequency range UHF:425-446MHz
Receiver sensitivity -110dBm
Transmitter power supply 2 AA alkaline batteries(not included)
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance up to 100 meters
Receiver parameters:F21-2S-WD-RXC
Material Glass-fiber reinforced Nylon
Enclosure protection class IP65
Frequency range UHF:425～446MHz
Transmitter power ≤10dBm
Receiver power supply AC110V
Output contactor capacity 250V/20A
Cable length 0.65m
Safety Code 32 bits(4.3billion)
Temperature range -30℃~+85℃
Control distance 30 to 50 meters

Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch

Telecrane F21-2S Electric Hoist Remote Control 110V Micro Winch Remote Control Switch
