Telecontrol 14 single speed push buttons F27-14S industrial RF wireless radio remote control

UTING offers a wide range of Radio Remote Control system solutions for cranes, locomotives, material handling equipment, mining machinery, mobile equipment, shiploaders, agricultural machinery, and virtually any equipment where the operator can be moved to a safer, more efficient location.
Our radio Remotes controls are your professional partner for every application. We offer not just remote radio control for individuals; we also supply customer-specific remote controls and receivers and we develop OEM-solutions for manufacturers.

Products features:

• 14-20 function buttons,Emergency stop button(double-speed is not supported)
• Up to 20 control contacts (F27-20S)
• With battery voltage warning device,the power supply is cut off when voltage is too low.
• Program the button function by computer interface(Temporarily unrealized)

Note:

An industrial wireless radio remote control system can consist of any number of remote control transmitters and wireless relay receivers working together. Multi channel units provide the flexibility for numerous functions and user selectable network. Thanks for the strong production capacity and a professional team of sophisticated engineers, it gave us the flexibility to customize our systems to meet your needs directly. We carefully listen to your application description and will specify the most cost-effective models from our product line to suit the requirements. We can even add hardware to provide a totally “turn-key” solution.

Industrial remote control F27-14S: 1TX+1RX
Technical Parameters:

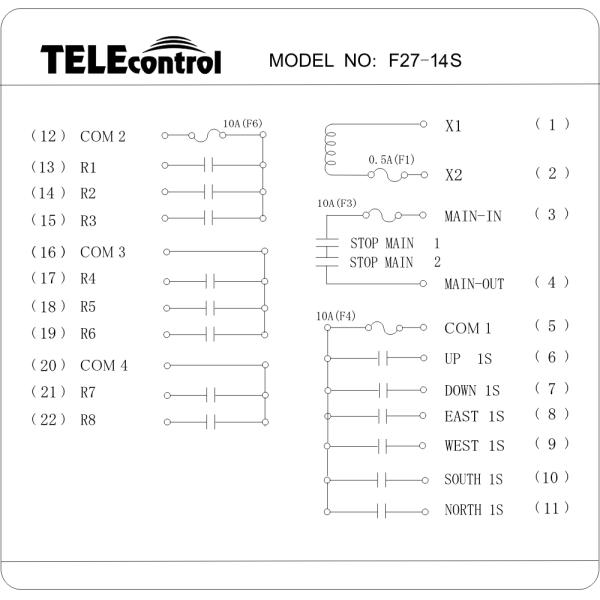

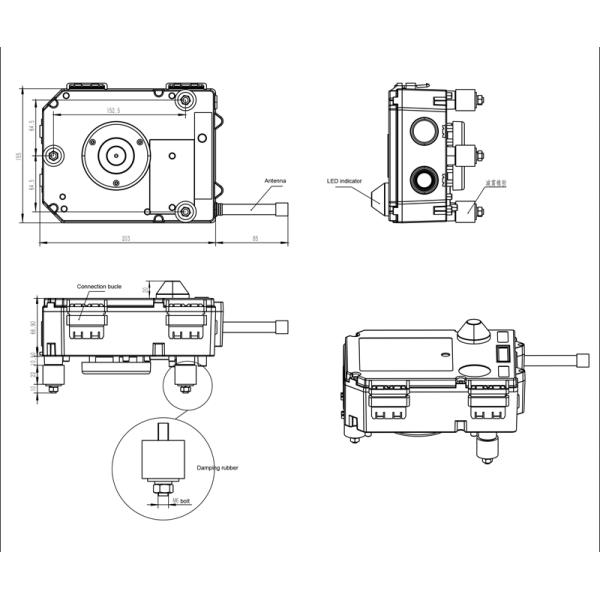

Industrial remote control F27-14S wiring diagram&Size:
