650T Hydraulic Crawler Crane With Boom 24m～84m Length Oil And Gas Industry
650T Hydraulic Crawler Crane With Boom 24m～84m Length Oil And Gas Industry
Specifications
Brand Name :
SANY
Model Number :
SCC6500
Place of Origin :
China
MOQ :
One Crane
Price :
Negotiable Price
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Description

650T Crawler Crane Is The Perfect Solution For Oil And Gas Industry

SCC6500 Crawler Crane Technical Specifications


Main performance parameters table

SCC6500 Main performance parameters of crawler crane

Performance Indicators

Unit

Parameter

Max rated lifting capacity

t

650(6m Working radius)

Max rated lifting capacity (with super lift)

t

642(7m Working radius)

Max rated lifting moment

t •m

4024

Max rated lifting moment (with super lift)

t •m

7905

Main boom length

m

24～84

Main boom length (with super lift)

m

36～108

Hybrid boom length

m

66～102

Hybrid main boom length (with superlift)

m

90～138

Luffing jib length

m

24～84

Length of luffing jib (with superlift)

m

24～96

Fixed short jib length

m

12～36

Heavy duty fixed short jib length

m

12

Longest arm combination (LJDB condition)

m

96+96/108+60

Main boom luffing angle

°

30～85

Jib luffing angle

°

15～75

Max rope speed of main reel single rope (outermost working layer)

m/min

110

Max rope speed of auxiliary reel single rope (outermost working layer)

m/min

105

Max rope speed of main luffing single rope (outermost working layer)

m/min

48×2

Max rope speed of auxiliary luffing single rope (outermost working layer)

m/min

105

Max rope speed of super lifting and luffing single rope (outermost working layer)

m/min

120

Slewing speed (no load)

r/min

0.6,1.2(Second gear)

Traveling speed

km/h

0～1.0(High speed)�～0.55(Low speed)

Gradeability (with basic boom, cab facing rearward)

%

15

Rated engine output

kW/r/min

400/2000

Machine weight (basic boom, 190t mainframe counterweight, 80t central weight, with 650t hook)

t

520

Average ground contact pressure of crawler tracks (basic boom, 180t main machine counterweight, 80t central counterweight, with 650t hook)

MPa

0.15

Main machine rear weight

t

190

Super lifting weight

t

310

Central weight

t

80

Max single piece transport dimensions (length x width x height)

mm

12270×3380×3400

Max single piece transport weight

t

70

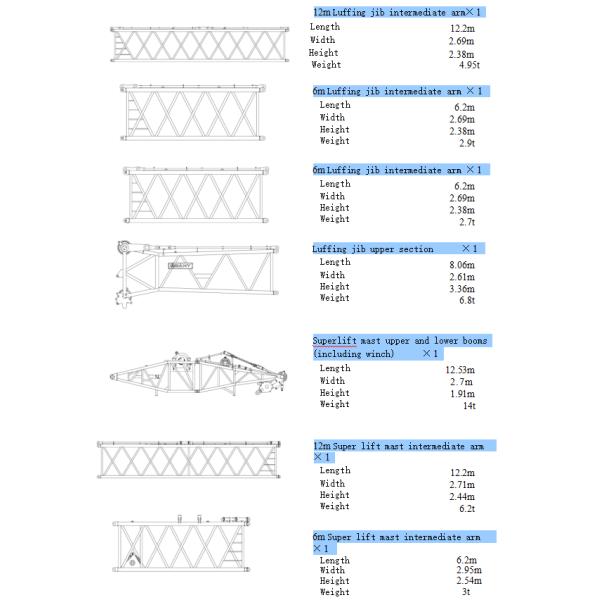

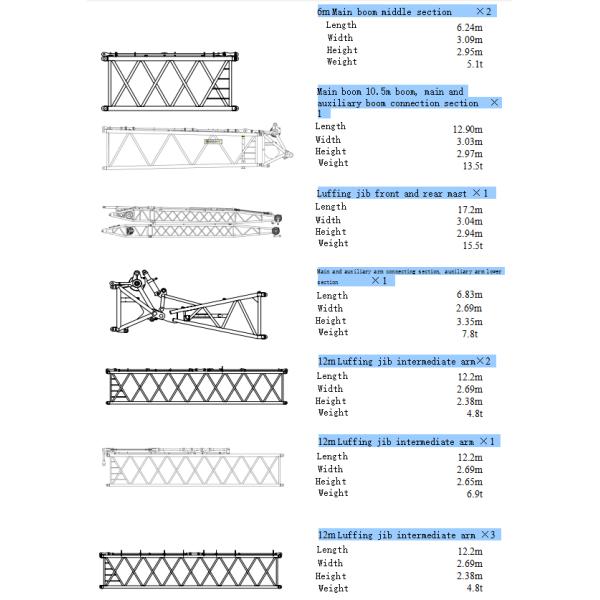

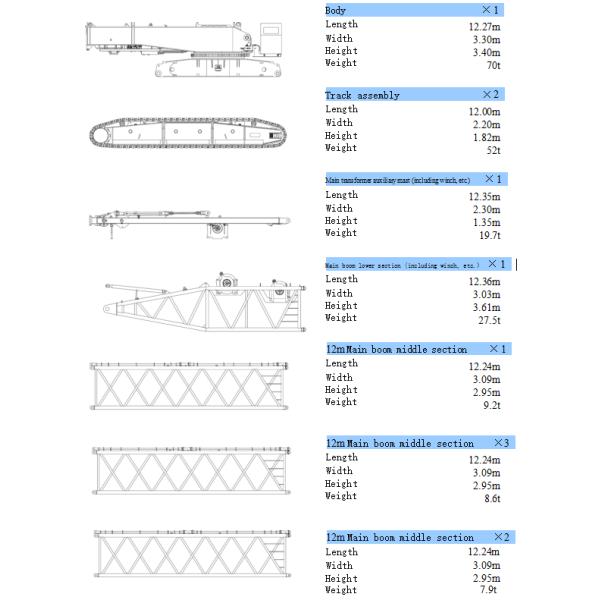

Transport dimensions
