DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
Specifications
Model Number :
DC 400W, 400W 15A
Place of Origin :
Guangdong, China
Brand Name :
CREATALL
Supply Ability :
100000 Piece/Pieces per Day
Price :
negotiable
Type :
dc dc converter, Voltage Regulator
Brand :
creatall
Origin :
CN(Origin)
Condition :
New
is_customized :
Yes
Port :
shenzhen port guangzhou port
MOQ :
10pcs
Delivery Time :
5-8 work days
Description

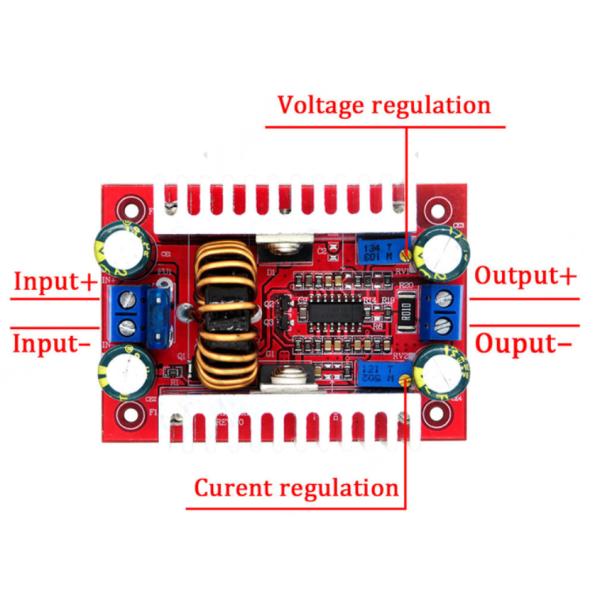

DC 400W 15A Step-up Boost module 8.5-50V to 10-60V Voltage Charger power supply module

Product Description:

  • module name : 400W boost constant current module
  • module nature : non isolated boost module ( boost )
  • Input voltage : dc8 . 5v-50v
  • Input current : 15A ( max ) over 8a , please strengthen heat dissipation
  • Static working current : 10MA ( when 12V rises to 20v , the higher the output voltageis , the higher the static current will be)
  • Output voltage : 10-60v continuously adjustable
  • Output current : if 12a Max exceeds 7a , please strengthen heat dissipation ( it is relatedto input and output voltage difference , the larger the voltage difference , the smaller theoutput current )
  • Constant current range : 0. 2-12a
  • Output power :=input voltage * 10a 10 . For example : Input 12V * 5A= 60W , input 24V * 5A=120w
  • Input 36V*5A= 180W , input 48V * 5A=240W
  • Working temperature : -40～＋85℃ ( please strengthen heat dissipation when the ambient temperature is too high)
  • Working frequency : 150KHz
  • Conversion efficiency : up to 96 % ( efficiency is related to input and output voltage , current and voltage difference )
  • Over current protection : Yes ( if the input exceeds 15a , the output voltage will be automatically reduced , and there is a certain range of error .)
  • Input reverse connection protection : none ( if more reverse connection current is neede . please connect diode in series with input )
  • Installation method : four 2 . 5mm screw holes
  • Wiring mode : wiring output
  • Module size : length 67mm * width 48mm * height 28mm
  • Module weight : 60g

DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V
