0.36 Inch Digital Ammeter Voltmeter 2 Wires 3 Wires 4 Digits LED
0.36 Inch Digital Ammeter Voltmeter 2 Wires 3 Wires 4 Digits LED
0.36 Inch Digital Ammeter Voltmeter 2 Wires 3 Wires 4 Digits LED
0.36 Inch Digital Ammeter Voltmeter 2 Wires 3 Wires 4 Digits LED
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Original Brand
Supply Ability :
10000 Piece/Pieces per Day
MOQ :
10pcs
Price :
negotiable
Display Type :
Digital Only
Dimensions :
22* 14 * 7mm
Update frequency :
about 200ms
Measuring range :
4-30V
Measuring accuracy :
1%
Storage temperature :
-10 ° C to + 65 ° C
Working current :
<20mA
Operating Humidity :
10 ~ 80%
Display size :
22 * 14 * 7mm
Sun exposure :
No direct exposure
Color :
red, blue, green, white
Port :
shenzhen port,guangzhou port
Delivery Time :
5-8 work days
Description

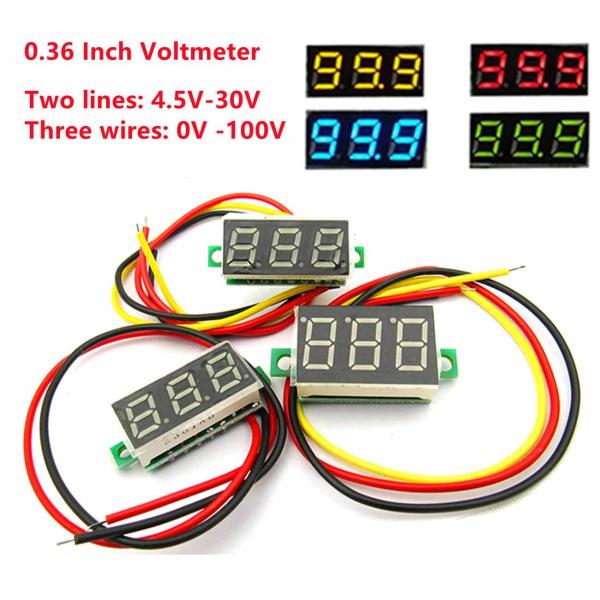

Mini 0.36 Inch DC 0-30V Voltmeter 2 Wires 3 Wires 4 Digits LED Motorcycle Digital Voltmeter Tester Digital Display Meter

Product Description:

●High precision
●Low starting voltage, minimum 4.5V for red, 4.7V for green, and 5.0V for blue.
●With reverse connection protection, no burning if connected reversely.

Technical parameter:
Measuring range: red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V
Power supply range: No need for additional power supply, directly use the measured voltage as the power supply, the range is the same as above
The highest input: DC30.0V. Note: The input voltage higher than 30V may be permanently damaged!
Allowable error: ±1%; when greater than or equal to 10V, the error is ±0.3V; when less than 10V, the error is ±0.10
Input impedance:> 100K ohm
Working current: red <23mA, green <18mA, blue <13mA
Refresh speed: about 300mS once
Display mode: three-digit 0.36" LED digital tube
Display color: red, green, blue optional
Lead length: 15cm
Dimensions: 23 x 15 x 10 mm
Length with mounting ears: 33mm
Mounting hole: hole distance: 28mm, aperture: 2.8mm
Net weight: 4.7g
