Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Packaging Equipment Test System Shaker Table Simulation Vibration Testing Machine
Specifications
Brand Name :
CME
Model Number :
KRD70
Payment Terms :
T/T
Description

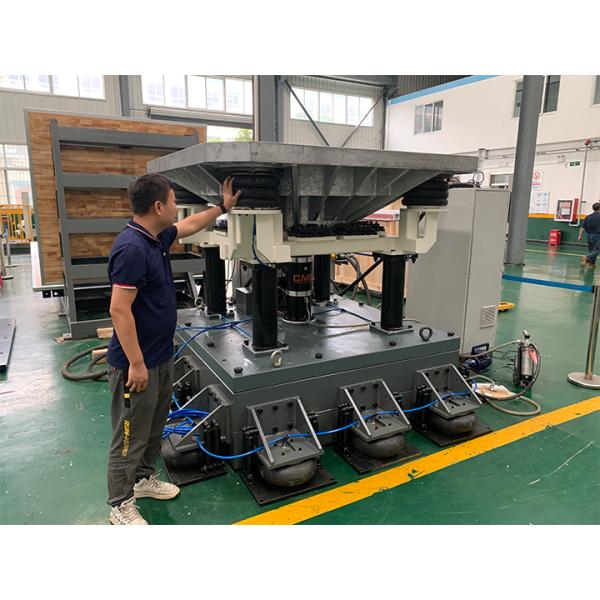

KRD70 series hydraulic vibration shaker converts the energy of high-pressure liquid into the power of the reciprocating motion of the cylinder through the electro-hydraulic servo valve. Especially suitable for vibration tests requiring low frequency and high force. It can realize sine, random, multi-point excitation and shock test (sine, random, sine on random, random on random, or resonant search & dwell). It’s applied for reproducing the vibrations of transportation vehicles, bulk packaging products, machinery, electrical and electronic products in the actual environment, thereby optimizing the product structure and saving costs.

l To achieve sine vibration, random vibration, multi-point excitation, and shock and bump;

l It can be used to simulate seismic excitation with low frequency and high force features.

l The high-strength cast aluminum or cast magnesium table ensures uniform and consistent vibration, high reproducibility, and avoids deformation of the table.

Technical Specifications

Model

Parameters

KRD

70－5K

KRD

70－1T

KRD

70－2T

KRD

70－3T

KRD

70－4T

KRD

70－5T

KRD

70－10T

KRD

70－20T

KRD

70－30T

KRD

70－40T

KRD

70－50T

Force

(KN)

5

10

20

30

40

50

100

200

300

400

500

Vibration Direction

Vertical, Horizontal

Vibration Mode

Sine, random, road spectrum simulation

Frequency Range

(Hz)

Sine

0.1～200

0.1～200

0.1～200

0.1～150

0.1～150

0.1～130

0.1～130

0.1～100

0.1～100

0.1～80

0.1～80

Random

0～300

0～300

0～300

0～300

0～200

0～200

0～200

0～150

0～150

0～150

0～150

Max. Load (kg)

100

200

400

600

800

1000

1500

3500

5000

7000

8000

Table Size

(mm)

600×600

800×800

1000×1000

1200×1200

1500×1500

1800×1800

2000×2000

2500×2500

3000×3000

Max. Displacement

(P-P) (mm)

100

Max. Velocity (m/s)

1

0.6/1

0.6

Max. Acceleration

(g)

5

Weight

(kg)

1500

1800

2000

3000

3500

4000

5000

6000

8000

9000

10000

Installation Condition

Working

Environment

Temperature 0～40℃，Humidity ≤80% (no condense)

Power Supply

(kVA)

AC380V±10％

18KVA

AC380V±

10％22KVA

AC380V±10％

30KVA

AC380V±10％

40KVA

AC380V±10％

45KVA

AC380V±10％

55KVA

AC380V±

10％90KVA

AC380V±10％

110KVA

AC380V±

10％130KVA

AC380V±

10％150KVA

AC380V±

10％170KVA

Floor

Special foundation, optional free foundation

Standards

ISTA1~7 MIL-STD-810 IEC 60068-2 ASTM D4728
