BTTZ-I Coaxial reflection photographic device (alternating current powered)

Purpose

Used to photograph fingerprints on horizontal light-colored smooth surface.

Content

Description

Working principle

A. After the light from the built-in light source is reflected by the half mirror, it irradiates vertically downwards on the smooth surface of the object along the optical axis of the camera lens.

B. The background reflects the incident light vertically upwards, then all the reflected light is in the direction of directional reflection, so is all the energy.

C. The fingerprint diffusely reflects the incident light, then the reflected light is in all directions, so is the energy.

D. When viewed in the vertical direction, all the light reflected by the background enters the lens, and only a small part of fingerprint-reflected light enters the lens. The result seen through the lens is the dark fingerprint in a bright background.

E. The lens hood prevents stray light interference from the environment.

Photograph fingerprints on horizontal light-colored smooth surface

A. Mount the coaxial light imager on the imaging system, macro lens on coaxial light imager (connect lenses of various calibers with conversion adapter).

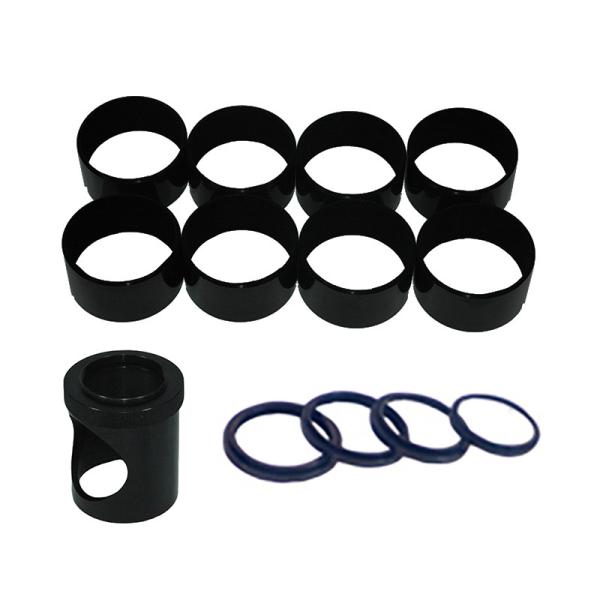

B. Place the fingerprint under the coaxial light imager, determine the number of stackable lens hoods according to the photography distance, shelter the fingerprint with the stackable lens hood to block stray light interference.

C. The light from the built-in light source irradiates the half mirror. The light, after reflected vertically downwards, irradiates the fingerprint. Then, the light reflected by the background vertically upwards enters the lens through the half mirror.

D. Adjust the height of the camera and the focal length of the lens until the dark fingerprint on the bright background can be seen clearly in the lens, then photograph the fingerprint.
