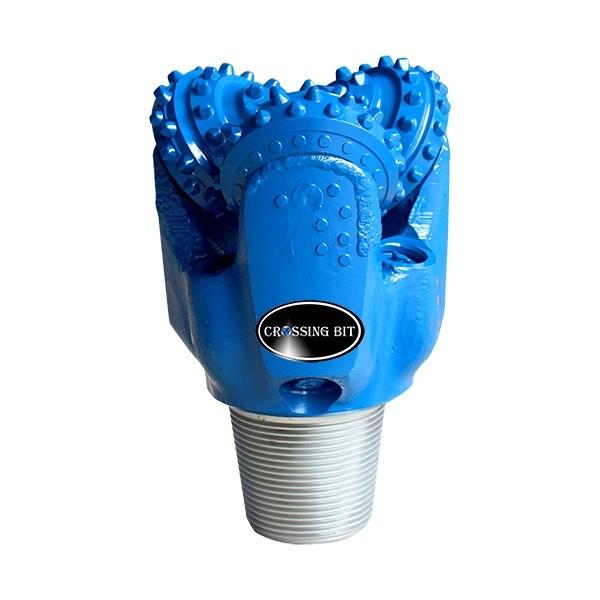

8 3/4 Inch api 3 cones bit TCI Button Bit IADC 617 222.3mm
8 3/4 Inch api 3 cones bit TCI Button Bit IADC 617 222.3mm
Specifications
Certification :
ISO9001
Place of Origin :
Hebei,China
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000PCS/Month
Delivery Time :
5-15work days
Packaging Details :
According to customer needs
Gauge :
with gauge trimmer
Teeth :
Insert teeth
Material :
Tungsten Carbide
Processing Type :
Forging
Sealed Type :
Rubber Sealed Bearing
Bit Type :
Milled Tooth Bit
Connection :
API REG
Iadc :
Based On Geology
Description

Three cone drill bits are commonly used in geological exploration in fields such as oil, natural gas, and mineral resources. In petroleum exploration, three cone drill bits can efficiently drill into the formation where oil and gas reservoirs are located, obtaining accurate reservoir information; In mineral resource exploration, it can be used to drill into ore bodies and understand their distribution, scale, and quality characteristics.

PRODUCT SPECIFICATIONS

product name

8 3/4 inch CR617 TCI tricone bit

size

222.3mm

model number

CR617

series

CR

tooth type

TCI

connection

4 1/2" Reg pin

bearing

rubber sealed journal bearing

Nozzle

three jet nozzles

application

water well,oil well,HDD,exploration,etc

weight

45kg

certificate

SY/T5164,ISO9001:2008

RECOMMENDED ROCK FORMATION

medium hard with high compressive strength and stick&hard stringers,such as hard shale,limestone,sandstone and dolomite,etc.

RECOMMENDED DRILLING PARAMETERS FOR APPLICATION　　

Type&IADC code

417

437

447

517,527

537,547

617,627

637,647

737,837

WOB(KN/mm)

0.35~0.90

0.35~0.95

0.35~1.00

0.35~1.05

0.35~1.05

0.35~1.05

0.70~1.20

0.70~1.20

RPM(r/min)

140~70

140~60

140~60

120~50

110~40

80~40

70~40

70~40

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
