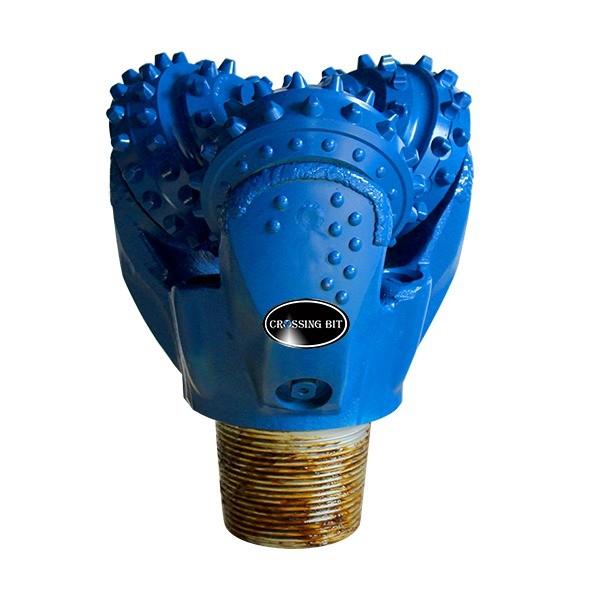

CA Series 13 5/8 Inch TCI Tricone Bit In Fields Of Oil Drilling And Geological Exploration
CA Series 13 5/8 Inch TCI Tricone Bit In Fields Of Oil Drilling And Geological Exploration
Specifications
Certification :
ISO9001
Place of Origin :
Hebei,China
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000PCS/Month
Delivery Time :
5-15work days
Packaging Details :
According to customer needs
Nozzle Type :
Fixed
Feature :
wear resistant
Nozzle Size :
1/4 inch
Formation :
midium hard
Seal :
rubber sealed
Material :
Tunsten Carbide
Gauge :
with gauge trimmer
Processing Type :
Forging
Description

Three cone drill bits are an important tool in the fields of oil drilling and geological exploration. It is mainly composed of more than 20 types of components, including cutting structure, bearing structure, locking element, oil storage sealing device, nozzle device, etc. It has the characteristics of adapting to a wide range of strata and high mechanical drilling speed. The design of a three cone drill bit is mainly based on practical experience, and is repeatedly designed and calculated through trial and error methods to achieve good working performance.

IADC WOB/(Bit Dia)(KN/MM) RPM/(r/min) Applicable Formations
116 117 0.35~0.8 150~80 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc.
136 137 0.35~1.0 120~60 Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect.
216 217 0.4~1.0 100~60 Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect.
246 247 0.4~1.0 80~50 Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect.
417 437 0.35~0.9 150~70 Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc.
517 527 0.35~1.0 140~60 Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect.
537 547 0.45~1.0 120~50 Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect.
617 627 0.45~1.1 90~50 Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect.
637 0.5~1.2 80~40 Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect.

Company Profile

Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.

Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.

Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.

This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
