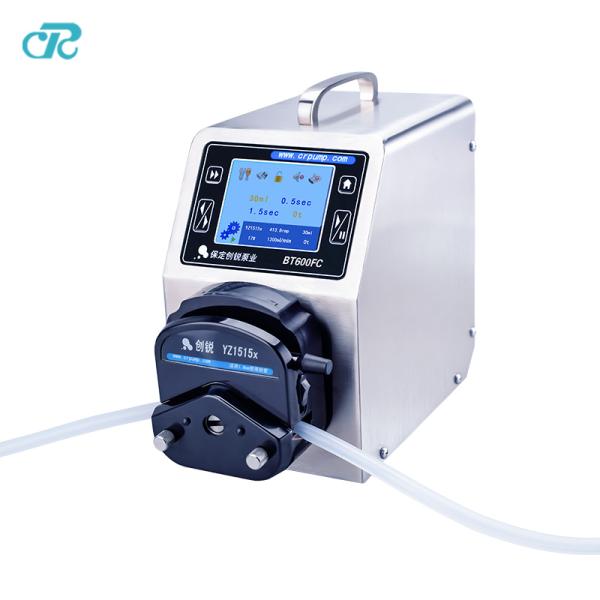

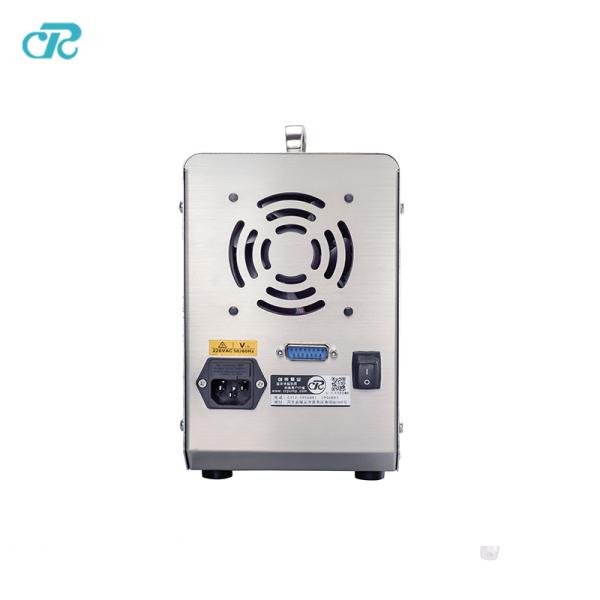

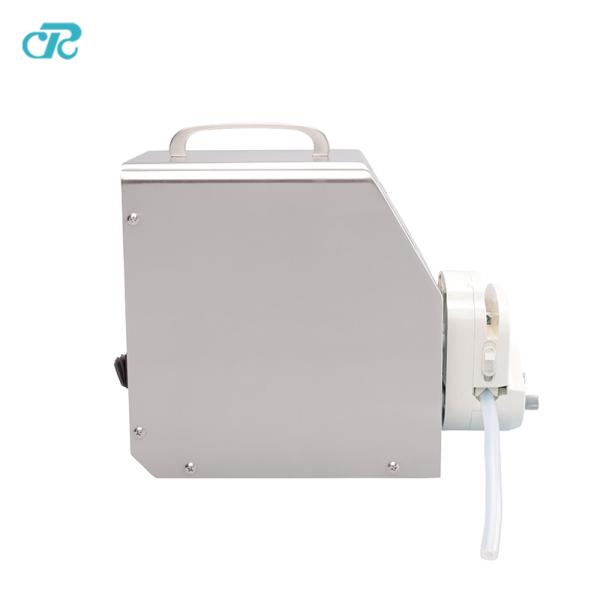

E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
E Liquid Milk /Polish Nail/ Twisted Glass Bottle Filling Peristaltic Pump
Specifications
Brand Name :
CR
Model Number :
BT600FC
Certification :
CE ISO9001
Place of Origin :
China
MOQ :
1set
Price :
USD660/PCS
Payment Terms :
T/T
Supply Ability :
1000PCS/month
Delivery Time :
8
Description
Model: BT600FC/YZ1515x
Speed range: 0.1-600 rpm
Flow range : 0.007-2280 ml/min
Max Number of Channel: 2
Power supply: AC 110V or AC 220V
Ideal lab scale vials filling pump
With touch screen setting
With Calibration function to ensure the precise
Support foot pedal Control
Support hand dispenser
CE certified product based on request.
Parameter Model : BT600FC/YZ1515x
Noted :The rpm display is the defaulted mode.If you need flow display, pls contact our sales to customized the program.
Speed
0.1-600rpm
Speed resolution
0.1rpm
Flow rate
0.007-2280ml/min
Filling volume range
0.1ml-9999L
Filling time range
0.1s~9999min
Pause time range
0.1s~9999min
Copy number
0-9999 t
Display
4-LED display
Speed control model
Rotary encoded switch control speed
Power supply
AC220V±10%(standard) or AC110V±10%(optional)
External control
Start & stop, direction control, speed control( 0-5v, 0-10v, 4-20mA optional )
Communication interface
RS232 and RS485, support MODBUS protocol mode
Foot pedal
Yes
Power
<22W
Tube specifications for the pump head YZ1515x(black is defaulted)
Noted : The standard tube which will come with the pump is model 18#, If you need other tube model ,pls contact our sales in advance.
Tube model
ID(mm)
OD(mm)
Standard material
Flow range (ml/min)
18#
7.9
11.1
Silicon tube
0.38-2280
17#
6.4
9.6
Silicon tube
0.29-1740
25#
4.8
8
Silicon tube
0.17-1020
16#
3.2
6.4
Silicon tube
0.082-492
19#
2.4
5.6
Silicon tube
0.051-306
14#
1.6
4.8
Silicon tube
0.027-162
13#
0.8
4
Silicon tube
0.007-42
