Specifications
Brand Name :
SEAMOUNT
Model Number :
OEM
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 Ton/ month
Delivery Time :
5-30
Packaging Details :
Customized according to product size export wooden case free of fumigation
Process :
Centrifugal casting
material :
Bronze Brass Copper
Sample :
be available
MQQ :
50kg
QC :
100% inspection on critical dimensions
size :
Non-standard customization
Description

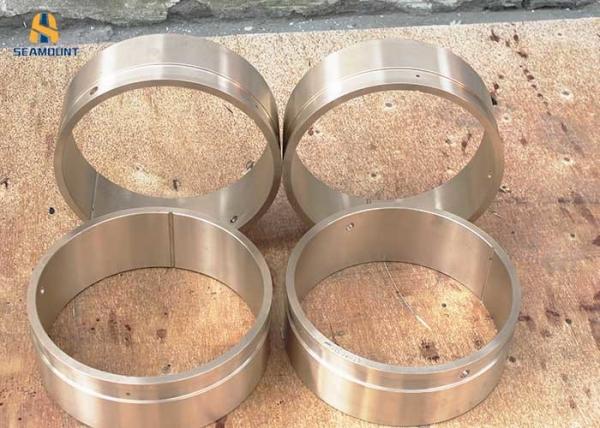

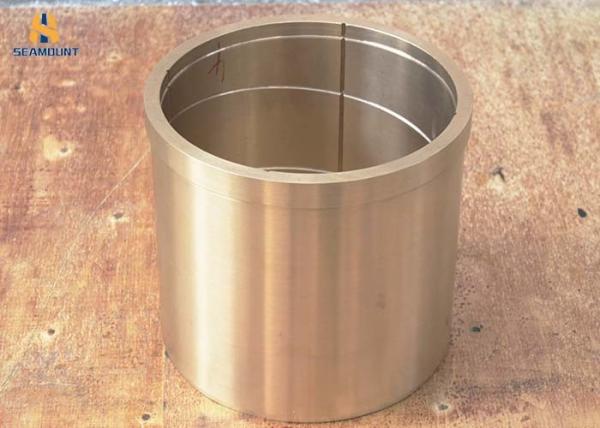

Excavator Bronze Bushing Good Heat Conductivity High Performance

Product description

We are the popular exporter of Excavator Bronze Bushing in Xinxiang, Henan, China. Bronze Bushes offered provide for durable finish usage and finds extensive use in metallurgy, petroleum, automobile, mining and other applications. We can make these bushes available in copper, steel or other low carbon material options. Some of its features include highly polished finish; superior wear resistance; best design options for ultimate performance; providing for precision fit; product coming 100% verified before packaging and delivery for ensuring meeting defined industry standards.

Production Feature

Grade BRONZE BRONZE BRONZE BUSHINGS BURONZE BUSHING
Material CuZn25Al5Mn3Fe3 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12
Density 8 8.9 7.8 8.9
Hardness HB >210 >70 >150 >95
Tensile strength N/mm² >750 >200 >600 >260
Yield strength N/mm² >450 >90 >260 >150
Elongation % >12 >25 >10 >8
Coeffcient of linear expansion 1.9×10-5/℃ 1.8×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃
Max.temp ℃ -40~+300 -40~+400 -40~+400 -40~+400
Max.load N/mm² 100 60 50 70
Max.speed (Dry) m/min 15 10 20 10
Max.PV(Lubrication) N/mm² *m/min 200 60 60 80
Compression deformation 300N/mm² <0.01mm <0.05mm <0.04mm <0.05mm

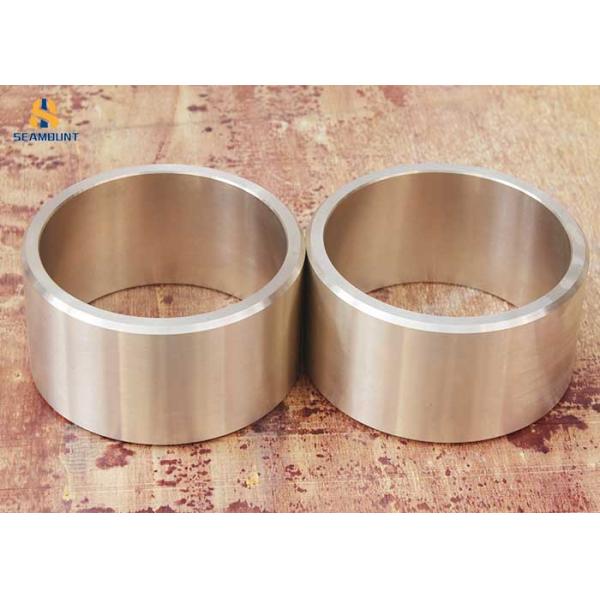

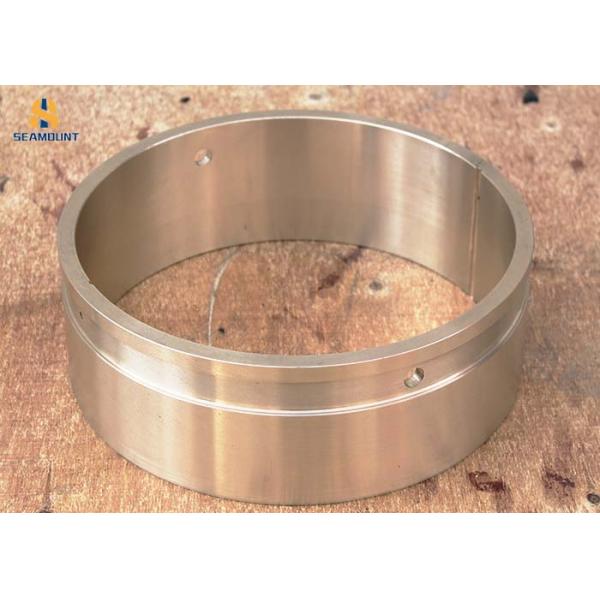

Excavator Bronze Sleeve Bearings Good Heat Conductivity High Performance

Features :

Place of Origin:A Henan, China (Mainland)
Brand Name:SEAMONUT
Model Number:A PC200 PC300 PC400
Copper alloy:brass,bronze,Lead bronze
Use:A Ore Mining
Processing Type:Machined parts
Packaging:A Export standard woodenbox package
Bearing mechanism:A solid friction
Lubrication condition:A Fluid film lubrication
Lubricant:A oiling
Operating characteristic:high temperature
Dimension:A as the drawing

Buy from us!

We use the advanced technology and the most advanced engineering to manufacture our products. Our company has developed into one of the advanced exporters and suppliers of macadam machine parts. Before delivering the products to valuable customers, we will conduct a comprehensive quality and performance inspection. This focus on quality has always led us to improve our products, which is why we never compromise on the quality and excellence of our products. Buy from us the products you need, we will always adhere to our high standards.

Excavator Bronze Sleeve Bearings Good Heat Conductivity High Performance

FAQ:

1. How to get a quotation?

Please send us drawings in igs, dwg, step etc. together with detailed PDF.

If you have any requirements, please note, and we could provide professional advice for your reference.

2. How to pay?

For small quantity, we could provide Paypal, Paypal commission will be added to the order.

For the big one, T/T is preferred.

3. How to ship?

For small quantity, we have cooperation with TNT, FEDEX, UPS etc

For big quantity, air or sea would be available for you to choose.

4. What about the packing details?

We attached our normal packing details.

If you have any special requirements, we would be willing to help.

5. What about the delivery time?

It would be 7-30 days normally for the parts to be ready and we had a system to ensure the time.

When you made your order, you would know
