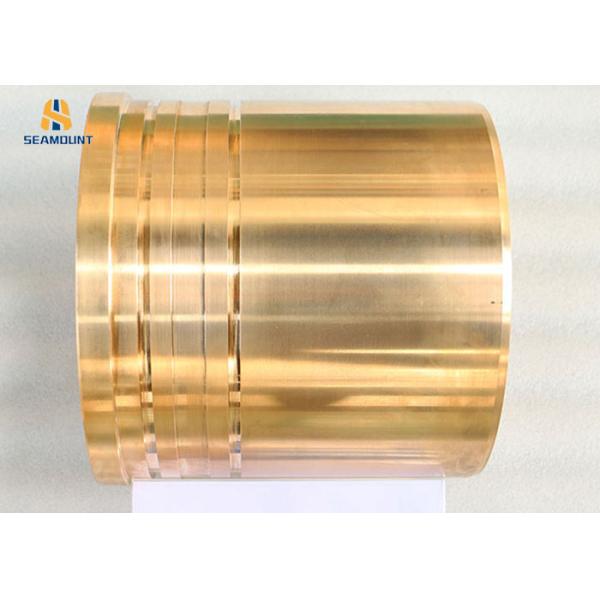

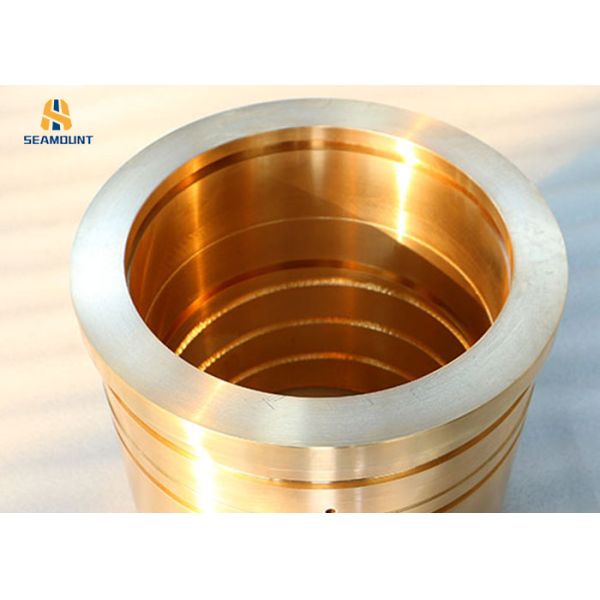

Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height
Specifications
Brand Name :
SEAMOUNT
Model Number :
OEM
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
50000KG per month
Delivery Time :
5-30 work days
Packaging Details :
Standard export wooden case free of fumigation
Size :
OEM Standard Size
QC control :
100% inspect by us ,accept the third party inspect
Item :
Tin Bronze Bushing
Shipping ways :
by courier,by air or by sea
Specification :
Full sizes and customized
operating characteristic :
high temperature
dimension :
as the drawing
Color :
Picture Color
Description

Wear Resistant Copper Bushing Outer Diameter 35mm28mm-29mm Height

Product description

We are instrumental in manufacturing, exporting and supplying of high quality Copper Metal Bushing that is extensively demanded in the market owing to its high durability. Our skilled professionals use the best manufacturing techniques and quality proven copper metal to manufacture this excellent quality bushing. Owing to its various qualitative features, the offered bushing is highly appreciated by our clients. Offered bushing is available for our clients with custom modifications to cater their variegated requirements.

Product specification

Product NO. Chemical Compositions
TOB 050 Cu Zn Al Fe Mn Si Ni Sn Pb
60~66 22~28 5.0~8.0 2.0~4.0 2.5~5.0 <0.1 <0.5 <0.2 <0.2

Physical and Mechanical Performance

Performance Index Data Performance Index Data
Density g/cm³ 8.2 Hardness HB ≥210
Linear Expansion Coefficient 10^-5/℃ 1.6-2.0 Flexibility Coefficient KN/mm² 120-140
Heat-conducting Coefficient W/(m·k) 38-55 Tensility % ≥12
Tensile Strength N/mm² ≥755 Friction Oil Lubrication μ 0.03
Anti-compact Tenacity ≥KJ/m^3 400-500 Dry Friction 0.16

Wear Resistant Copper Bushing Outer Diameter 35mm 28mm - 29mm Height

Production Feature
1. The long-term use without maintenance;
2. Suitable for high static and dynamic bearing bearer;
3. have a very low coefficient of friction and smooth, no bite-axis phenomenon;
4. dust resistant, corrosion resistance, impact resistance and edge load capacity;
5. can be used over a wide temperature range;
6. suitable for reciprocating, rotary, oscillating and start frequent and difficult to form a film of the occasion;
7. With lower wear rate, long service life
