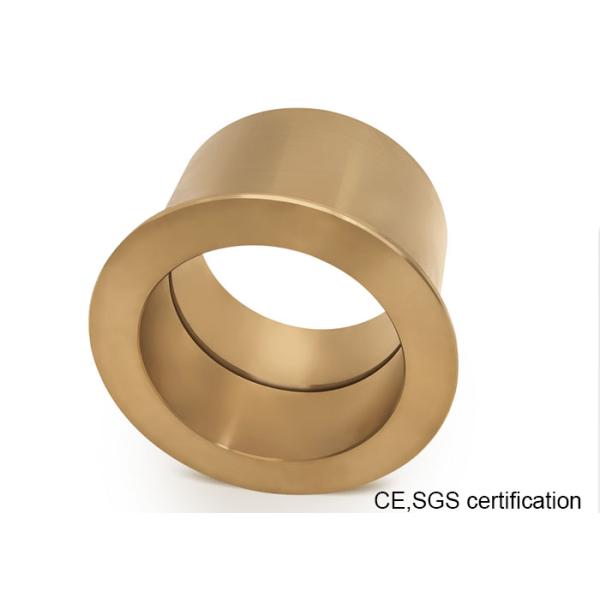

210HB Galvanized Slide Copper Alloy Oil Groove Bushing
210HB Galvanized Slide Copper Alloy Oil Groove Bushing
210HB Galvanized Slide Copper Alloy Oil Groove Bushing
210HB Galvanized Slide Copper Alloy Oil Groove Bushing
Specifications
Brand Name :
SEAMOUNT
Model Number :
OEM
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 10-15/kg
Payment Terms :
T/T, Western Union
Supply Ability :
50000KG per month
Delivery Time :
30 Days
Packaging Details :
Standard export wooden case
Product Material :
Bronze Alloy
Processing method :
CNC processing
Hardness :
>210HB
Standard :
ASTM/ JIS/ ASME/ AISI/ EN/ BS
Customized :
Available
Type :
Plain bushing
Application :
Machinery parts
Description

Customized Galvanized Slide Bushing Copper Alloy Oil Groove Bushing Bearing

Product Description

The finished copper alloy bushing provides a simple and economical bearing application, featuring high bearing capacity, good corrosion resistance, and arbitrariness of dimension processing.At the same time, different brands of copper alloy can be provided according to different service conditions, and different forms can be processed according to projection requirements. It has higher dimensional accuracy than rolled copper bearings.

210HB Galvanized Slide Copper Alloy Oil Groove Bushing

Material bronze alloy:C93700, C93800,C93200,C90700, etc
Brass alloy: 3602, 2604, H59, H62, copper, phosphor bronze, etc.
Steel & Galvanized
Surface Treatment Anodizing, Polishing, Powder coating, Passivation, Sandblasting, Nickal plating, Zinc plating, Chrome plating, Heat treatment,Oxidation, Laser engraved logo.
Tensile Strength >750N/mm²
Yield Strength >340N/mm²
Working Tempreture Limit -40~200℃

Oil-free bushing lifespan calculation

The life of oilless bushings depends on the amount of wear. The calculation of wear amount is very different due to surface pressure, sliding speed, movement pattern, lubrication conditions, surface roughness of matching shaft and other conditions.From the viewpoint that the wear amount is proportional to the load and sliding distance, the following formula is usually used to calculate the wear amount. Please consider it as the standard for selection.

Estimate wear(mm)W=K*1×p×v×T

Wear ratio(k):mm/(N/mm2·m/s·Hr)

Design surface pressure(p):N/mm2

Sliding speed(v):m/s

Friction time(T):Hr-hr

Roughly Standard for Friction Ratio
