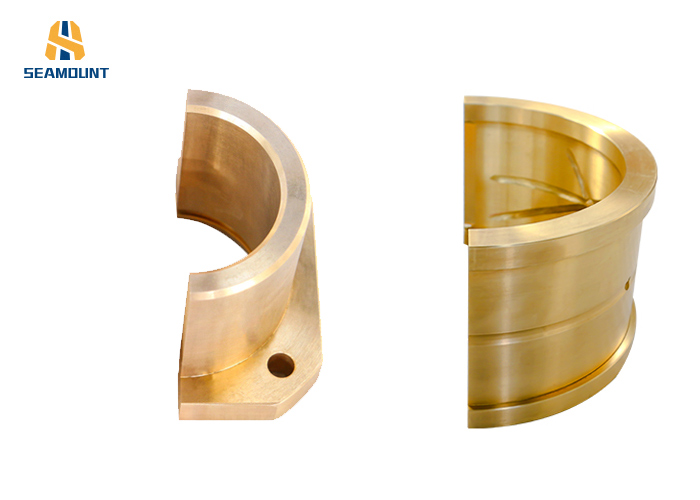

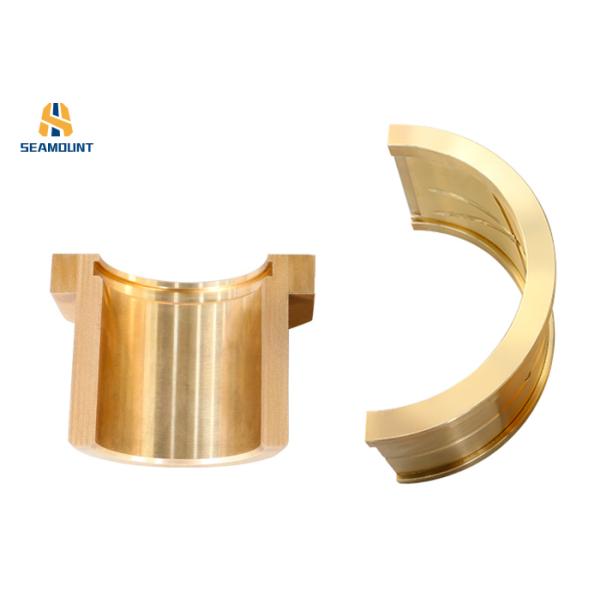

Bronze Semi Circular Bearing Bush Good Heat Conductivity High Performance

Product description

The bearing bush is the contact part between the sliding bearing and the shaft, which is very smooth. It is generally made of bronze, antifriction alloy and other wear-resistant materials. Under special circumstances, it can be made of wood, plastic or rubber. Also known as "bushing", the shape of the semi-circular cylindrical tile.

Casting method: horizontal centrifugal casting (80-1000mm in diameter, 3-1000kg in weight), sand casting (0.3-1200kg in weight), metal mold casting, free dispersion casting, etc

Main materials: tin bronze: zqsn10-1, 10-2, 4-3, 4-0.3, 6-6-3.5-5-5, etc

High lead tin bronze: zqpbd15-8, 15-7, 10-10, 20-5, etc

Aluminum bronze: ZQAl9-4, 9-3, 10-4-4, 10-3, etc

Manganese brass: zhmn58-2, 53-3-1, 55-3-1, etc

Lead brass: zhpb63-3,63-0.1,60-2,59-2,59-1,58-2.5, etc

Common brass: H96, H90, h85, H80, H70, H68A, H68, H65, h63, H62, h60, H59, etc

Advantage

1. General large-scale copper tile and copper sleeve products are delivered with chemical composition, mechanical property report and mechanical property sample for re inspection by users;

2. NDT shall be carried out for key class I products to ensure that there are no defects such as internal cracks, slag inclusions and looseness;

3. The products used in large-scale cement equipment are produced by the most advanced low-pressure casting process at present. The characteristics of low-pressure casting, such as stable filling and solidification under pressure, are used to completely eliminate the defects of looseness, cracks and slag inclusions and obtain dense castings. Ensure that the surface is free of defects such as porosity and slag inclusion

Our factory specializes in the production of rotary kiln lining tiles, cement kiln, metallurgical kiln, lime kiln and other series of rotary kiln copper tiles, mechanical shaft sleeve, large shaft sleeve, copper worm wheel, copper wire mother, connecting rod copper tile, guide sleeve, fuselage sleeve; various shaft sleeves, worm wheel, wear-resistant gasket, wear-resistant ring, sleeve, etc. of coal and mining machinery, welcome customers to call us for customized drawings.
