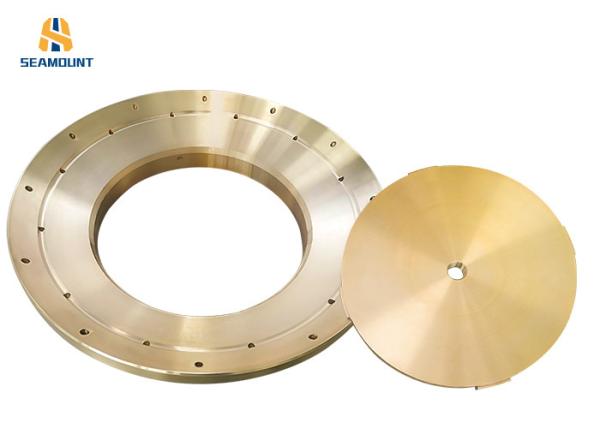

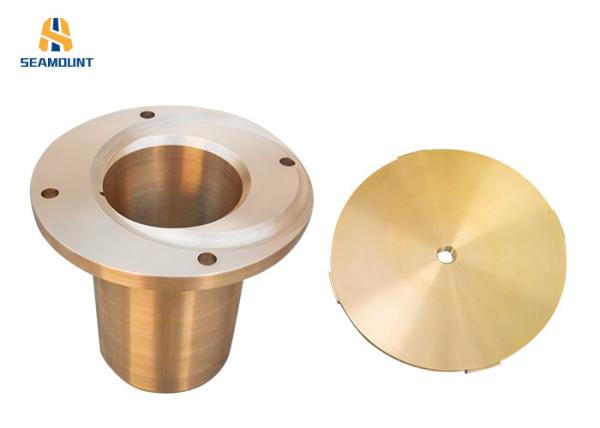

Standard Round Copper Plate With Simmons Cone Crusher Bronze Copper Sleeve

The product name is cone crusher sleeve, Round Copper Plate commonly known as bowl bearing bush, copper tile, etc., model

s75.s155.s240, etc. the material is mainly lead bronze, which is suitable for Simmons crusher, and can be processed and customized according to drawings.

Product description

Copper bushing is widely used in the mechanical industry, and it is a kind of matching and basic part with strict requirements. It is called the mechanical joint. Where there is mechanical movement, copper sleeve is indispensable. Because the copper sleeve has many excellent properties, such as superior mechanical properties, wear resistance, relatively favorable price and so on. The sliding bearing has been fully applied in the cold pier machine industry. The copper sleeve is the sliding part of the sliding bearing, also known as "shaft sleeve"

Production Feature :
The copper sleeve of crusher is the vulnerable copper accessory of crusher. As for the maintenance of the copper sleeve of crusher, the assembly surface and working surface of the copper sleeve shall not be exposed to the air. A layer of antirust oil shall be applied and wrapped with newspaper or plastic cloth. If the antirust oil fails or the copper surface is exposed to the air, the packaging shall be replaced. Single vertical place, can not collide with each other, the bottom pad a little thick paper shell or clean rubber pad. The storage place should be ventilated and dry.

Product Specification;

Replacement of copper sleeve of horizontal shaft

The outer copper sleeve can be taken out by a self-made pulling device, and the inner copper sleeve can be removed by hammering with a central rod device. After the copper sleeve is removed, it is necessary to check whether the inner hole size of the axle frame is reasonable. When installing the copper sleeve of horizontal shaft, use dry ice to shrink for at least 2 hours.

The bearing accessories of crusher are divided into copper shaft sleeve and copper bush. The copper sleeve of crusher is used for sliding bearing. Its main function is to support the rotating spindle and ensure its normal operation. Its function is to reduce the wear of parts, fix and prevent corrosion, and protect large mechanical parts.
