Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
Specifications
Brand Name :
CNASEC
Model Number :
5,000m3 LNG Storage Tank
Place of Origin :
China
Supply Ability :
Tank capacity: 500~40,000m3
Certification :
ASME, API, ISO, GB
MOQ :
>1set
Type :
Single-containment tank
Medium :
LNG
Capacity :
5,000m3
Daily evaporation rate :
less than 0.08%
name :
LNG Liquefaction Plant
Area occupied :
127.3 Acres
Description
Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks
LNG Liquefaction Plant with 5,000m3 LNG storage tank
In April 2014, we undertook the coal bed gas liquefaction peak-shaving station EPC project for Sancha Town, Wuzhai County, Shanxi Province, including 5000m3 LNG storage tank.
Typical data
Project Name 0.3Nm3/d coal bed gas liquefied peak adjustment project
Enduser Jinxibei Natural gas Co., Ltd., Shanxi province
Construction scale 3sets 10×104Nm3/d liquefied natural gas plant
Liquefied process Mixed cooling process with precooling
Process power consumption per cubic 0.433KWH/NM3
Coolant compressor Screw compressor, 3pcs, motor driven
Area occupied 127.3 Acres
Construction period 14 months
Location Dacha Town Wuzhai County, Yizhou, Shanxi province
Process introduction Five kinds of Hydrocarbon such as N2, Methane, Ethylene, Propane, Isopentane are used as mixing coolant, Freon as precooling system coolant. The feed gas goes to liquefied cold box for heat exchanging with coolant after purifying. The LNG product is stored in storage tank.

Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks

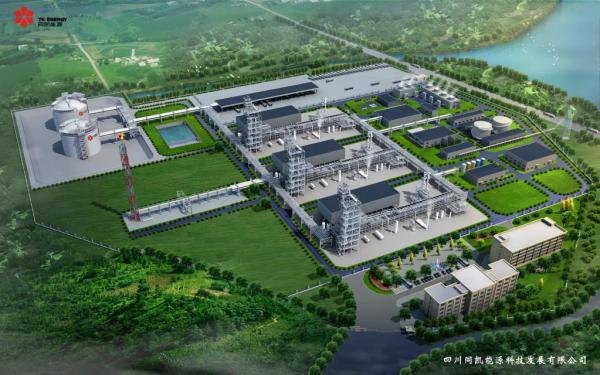

A bird's-eye view of liquefaction plant

Our Strength

CNASEC has its own engineering & technical team, that professional and with rich experiences. The professional and technical personnel account for 93% of the total number of employees, including professional level senior engineer 2 people, all kinds of national registered engineer 65 people, covering majors of process, general drawing design, automatic control, electric, architecture, structure, civil engineering, sewage engineering, procurement, construction management as well as project budgets etc..
To date, CNASEC has established over 30 projects related to LNG and Ethylene etc., and been equipped with the ability of designing and developing 100,000m3-level full containment tanks. In addition, the company has successfully generalized a set of standardized systems of storage tank engineering, realizing the short-term goals of the construction period and successfully shaping the national brand image of large-scale cryogenic liquefied storage and transportation projects!

Liquefied Natural Gas Plant LNG Liquefaction Plant 5000m3 Cryogenic Storage Tanks

Advanced Design Software

◆ Engineering Drawing Software:AUTOCAD

◆ 3D Factory Model Real-time Roaming:NAVISWORKS

◆ Process Simulation Software:HYSYS

◆ Pipeline Stress Analysis: CESAR II

◆ Structural Analysis: ANSYS, ABAQUS, LUSAS,STAAD

◆ 3D Piping Arrangement System:PDMS

◆ Project Management Software: PROJECT

http://mao.ecer.com/photo/cryogenic-engineering/editor/20190505171659_77126.jpg
