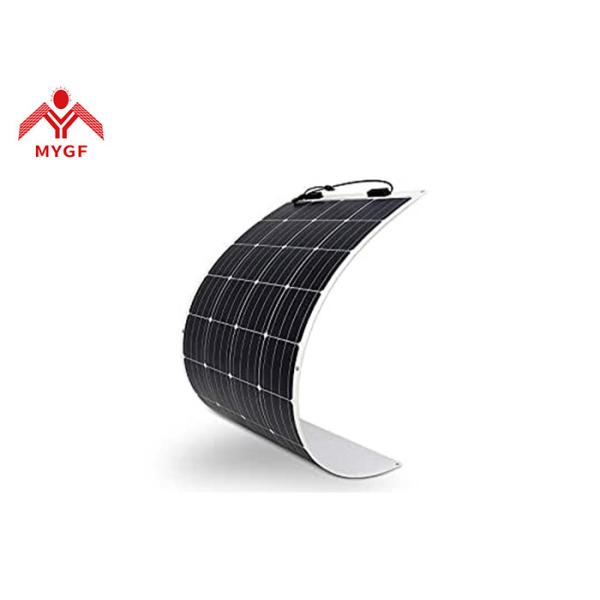

MYGF-FL-50W Flexible Solar Panel
Flexible Solar Panel Features:
Ultra-light:
Through replacement of the glass and optimization of the frame MYGF weighs as 70% less than conventional PV panels.
Flexible:
MYGF combines a unique, patented material with other industry-leading technologies to produce superior flexible crystalline-silicon panel which can be installed on curved surface.
Aesthetics:
Aesthetically pleasing design with patented materials and sophisticated manufacturing process results in a high-efficiency, attractive panel, with no light pollution and high levels of safety.
Easy Installation:
MYGF can reduce installation cost significantly through the use of re-engineered components, ease of handling and faster installation.
When are flexible solar panels useful?
Perhaps the best application for flexible solar panels is in situations where you might need a portable solar solution. Products like the Flexible Solar Panel are one way to generate solar power on the go, potentially on the roof of an RV. Similar to flexible panels are foldable solar panels like the Solar Charger. Like flexible panels for your RV, folding solar panels are a great option for camping and hiking trips if you need lightweight and portable power.
All things considered, a flexible solar panel setup is usually best for on-the-go solar power instead of as a permanent home solar solution. When you’re out on the trail, camping, or driving long distances, having a durable, lightweight, and flexible solar panel setup can be a great way to generate free electricity from the sun.
Flexible Solar Panel Specification
Model No. | MYGF-FL-20W | MYGF-FL-30W | MYGF-FL-50W | MYGF-FL-75W | MYGF-FL-100W | MYGF-FL-120W | MYGF-FL-160W |
Max power | 20W | 30W | 50W | 75W | 100W | 120W | 160W |
Componet | ECTFE/EVA/Cell/EVA/Backsheet | ||||||
Open Circuit Voltage(VOC) | 22.5V | 22.5V | 22.5V | 22.5V | 22.5V | 22.5V | 22.5V |
Short Circuit Current(ISC) | 1.19A | 1.78A | 2.96A | 4.45A | 5.93A | 7.11A | 9.48A |
Max. Power Voltage(Vmp) | 18V | 18V | 18V | 18V | 18V | 18V | 18V |
Max. Power Current(Imp) | 1.11A | 1.67A | 2.78A | 4.17A | 5.56A | 6.67A | 8.89A |
Maximum System Voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
Power Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
Dimension Folded(cm) | 60x30x0.4 | 61.5x44x0.4 | 88x44x0.4 | 107x51.5x0.4 | 124x55x0.4 | 116x67x0.4 | 124x55x0.4 |
Controller | PMW/MPPT | ||||||
Opertate Temperature Range | -40℃ to + 85℃ | ||||||
Relative Humidity | 0~100% |
Why choose us?
1. Excellent efficiency, Easy Installation & Maintenance
2. Outstanding performance in Low-Light
3. High transparent, Low-Iron, Tempered Glass
4. Ability to withstand High Wind-Pressure and Snow-Load
5. Advanced module sealing technology to eliminate leakage and frame deformation
6. Ability to meet customized customer's specific requirements
FAQ
(1) The price is too expensive, why?
We choose the best material to make it, such as flexible solar panel, we use A grade Cells, all of them are imported from the USA, we insist on the development of quality
(2) What is the payment term?
100%T/T in advance 30%T/T in advance balance before shipment when your order over 10000 usd
(3) Why the delivery time is too long
It depend on your quality of order and product type.If you only need a sample, we can send you soon.
(4) What is the different of mono and poly
The cells conversion efficiency is different the mono cells is higher than the poly cells mono is 20.6%, poly is 18.3% so mono panel more expensive than poly panel
(5) What is the warranty of the panel
Mono panel and poly panel is 10-years warranty materials technology,90% 10-years and 80% 25-year power output guarantee. flexible panel is 1year, lifetime is 5 years
(6) Can you do OEM for my panels
Yes,we support OEM and ODM
