150 Watt Polycrystalline Solar Module , Solar Polycrystalline Panel Durable
150 Watt Polycrystalline Solar Module , Solar Polycrystalline Panel Durable
Specifications
Brand Name :
MYGF
Model Number :
MYGF-150W-4
Place of Origin :
Jiangsu, China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
ONE PCS PER CARTON OR 25PCS PER PALLET
Delivery Time :
20 DAYS
Supply Ability :
1500UNITS PER WEEK
Product Name :
Polycrystalline Solar Panel
Maxpower(W) :
5W-300W
Advantage :
ECO Friendly
Type :
Easy installation
Feature :
Anti-aging
Anodized :
Alu minum alloy
Transmission rate :
High
Application :
industrial,house
Description

MYGF-150W-4 Polycrystalline Solar Panel Easy installation Alu minum alloy

Features of PolyCrystalline Solar Panels

These solar panels are based on polycrystalline silicon. Although they are slightly less efficient than a monocrystalline solar panel, they tend to be less expensive and are ideal if you are on a smaller budget, but still want a high quality panel.

There are many benefits to these types of solar modules. Since they are simpler to produce and cost less to manufacture, they are cost effective and are ideal for small to medium size roofs. They are also durable and can last at least 25 years.

Shop today and start lowering your electricity bill by purchasing and using polycrystalline solar panels for your solar project.

Applications of PolyCrystalline Solar Panels

  • Polycrystalline panels are suitable for roof mounted arrays.
  • They are used in large solar farms to harness the power of the sun and supply electricity to nearby areas.
  • They are used in standalone or self-powered devices such as traffic lights in remote areas, off-grid households, etc.

What are Polycrystalline Solar Panels?

Polycrystalline panels are relatively new. They start out similar to monocrystalline panels in that a silicon crystal is placed in a vat of molten silicon.

However, instead of drawing the crystal up from the vat as it’s done for monocrystalline manufacturing, the vat is simply allowed to cool. This is what gives the polycrystalline the distinctive edges and grains in the solar cell.

Polycrystalline Solar Panel​ Specification

Model Maxpower(W) Dimension(mm) Weight Imp(A) Vmp(V) Isc(A) Voc(V)

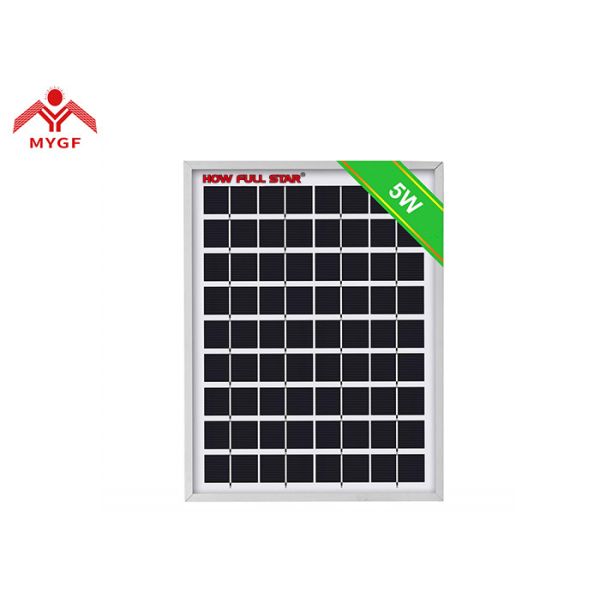

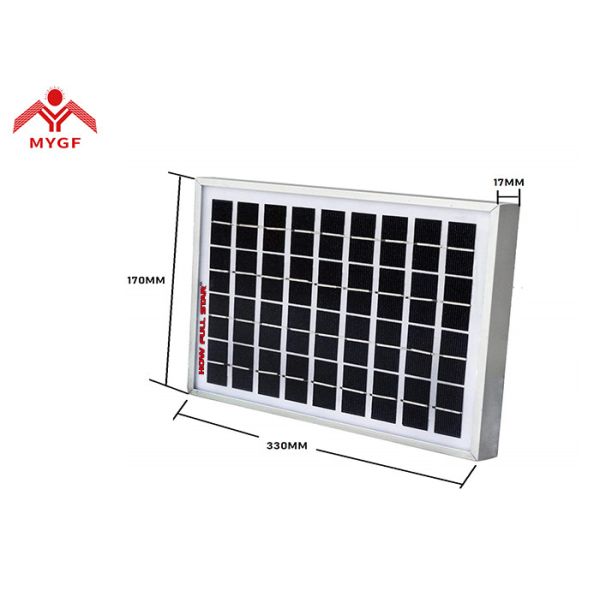

MY-5P 5W 320x200x17 0.8KG 0.28 17.49 0.3 21.67
MY-10P 10W 360x300x17 1.5KG 0.57 17.49 0.61 21.67
MY-25P 25W 550x350x25 2.6KG 1.14 17.49 1.22 21.67
MY-35P 35W 420x670x25 3.9KG 1.42 17.49 1.52 21.67
MY-50P 50W 670x530x30 6.3KG 2.91 17.13 3.12 21.63
MY-70P 70W 760x670x30 6.8KG 4.09 17.13 4.37 21.63
MY-80P 80W 840x670x35 9KG 4.79 17.71 5.13 21.7
MY-100P 100W 1020x668x35 9.6KG 5.71 17.49 6.11 21.67
MY-120P 120W 1230x680x35 10KG 6.86 17.49 7.34 21.67
MY-150P 150W 1480x680x35 10.6KG 8.33 18.05 7.47 22.04
MY-180P 180W 1580x808x40 15.5KG 5.01 36.05 5.86 42.5
MY-200P 200W 1485x990x40 18.0KG 7.55 26.50 8.08 31.00
MY-240P 240W 1640x990x40 19.5KG 8.00 30.00 8.56 36.30
MY-250P 250W 1640x990x40 19.5KG 8.09 30.90 8.65 36.90
MY-280P 280W 1960x990x50 22.5KG 7.78 36.00 8.40 43.20
MY-300P 300W 1960x990x50 22.5KG 8.10 37.03 8.79 44.30

Why choose us?

1. Excellent efficiency, Easy Installation & Maintenance

2. Outstanding performance in Low-Light

3. High transparent, Low-Iron, Tempered Glass

4. Ability to withstand High Wind-Pressure and Snow-Load

5. Advanced module sealing technology to eliminate leakage and frame deformation

6. Ability to meet customized customer's specific requirements

FAQ

(1) The price is too expensive, why?

We choose the best material to make it, such as flexible solar panel, we use A grade Cells, all of them are imported from the USA, we insist on the development of quality

(2) What is the payment term?

100%T/T in advance 30%T/T in advance balance before shipment when your order over 10000 usd

(3) Why the delivery time is too long

It depend on your quality of order and product type.If you only need a sample, we can send you soon.

(4) What is the different of mono and poly

The cells conversion efficiency is different the mono cells is higher than the poly cells mono is 20.6%, poly is 18.3% so mono panel more expensive than poly panel

(5) What is the warranty of the panel

Mono panel and poly panel is 10-years warranty materials technology,90% 10-years and 80% 25-year power output guarantee. flexible panel is 1year, lifetime is 5 years

(6) Can you do OEM for my panels

Yes,we support OEM and ODM
