Specifications
Brand Name :
Crystro
Place of Origin :
China
MOQ :
10pcs
Price :
USD 20-100/pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000pcs per week
Delivery Time :
4-5 weeks
Packaging Details :
Transparent clean box
Description

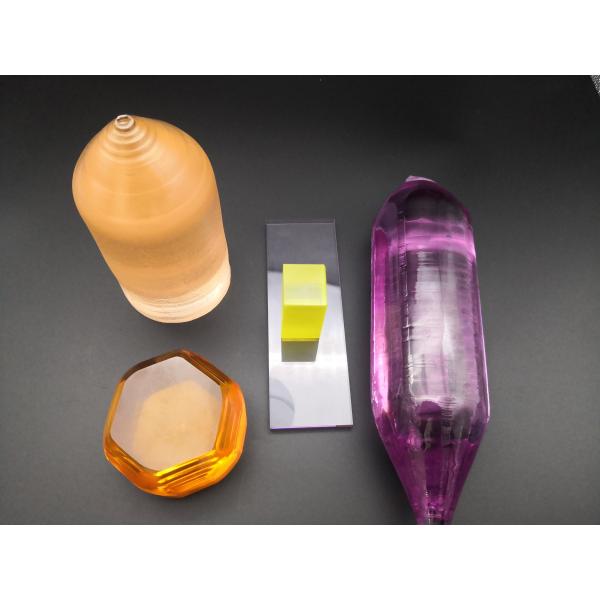

Magneto-optical Crystal TGG for Faraday Devices ( Rotator and Isolator )

The magneto-optical crystal TGG is an optimum material for Faraday devices (Rotator and Isolator) in the range from 400nm-1100nm, excluding 470-500nm.The Faraday rotator consists of a TGG rod contained inside a special designed magnet. The rotation sense of the polarization of a light beam passing through the rotator only depends on the direction of the magnetic field and not on the direction of propagation of the light beam. The optical isolator is a Faraday rotator set between two suitably aligned polarizers which allows a light beam to pass through in one direction only. TGG has a combination of excellent properties such as large Verdet constant, low light loss, high thermal conductance and high light damage threshold which makes it a unique material for Faraday devices particularly suitable for YAG lasers and Ti: sapphire tunable lasers, ring lasers and seed injected lasers.

Features:

  • Large Size Boule Diameter: up to 3”
  • Extinction Ratio Typical: >35 dB High Grade: >40 dB
  • Verdet Constant 40 rad/T/m at 1064 nm
  • Refractive Index 1.95 at 1064 nm

Applications:

  • Faraday Rotator;

  • Optical Isolator.

Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm

CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter
