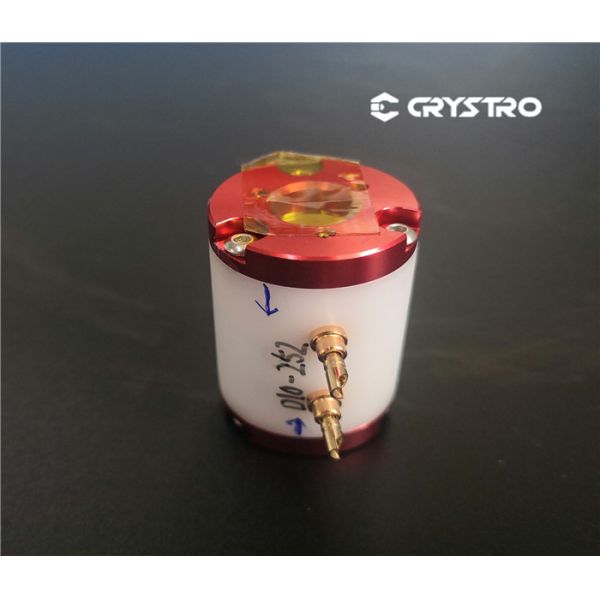

1064nm DKDP Pockels Cell Q Switch High Damage Threshold
1064nm DKDP Pockels Cell Q Switch High Damage Threshold
1064nm DKDP Pockels Cell Q Switch High Damage Threshold
1064nm DKDP Pockels Cell Q Switch High Damage Threshold
Specifications
Brand Name :
Crystro
Model Number :
CR210225-01
Certification :
SGS/COC/ROHS
Place of Origin :
China
MOQ :
1pc
Price :
USD 20~200/pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500pcs per month
Delivery Time :
1-5 weeks,STOCK
Packaging Details :
Transparent clean box
Material :
High Damage Threshold1064nm DKDP Pockels cell For Tattoo Removal
Extinction Ratio: :
5000:1
Damage Threshold: :
>750MW/cm2 @1064nm, 10ns 10Hz
Spectral Range :
240nm~1400nm
Typical Aperture :
8mm~30mm
Dimension :
19*24mm,20*29mm,25.4*39mm or as required
Clear Aperture :
8mm,10mm,11mm,13mm or as required
Capacitance: :
<4.5pF
Description

High Damage Threshold1064nm DKDP Pockels cell For Tattoo Removal

With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including: OEM laser systems; Medical/cosmetic lasers; Versatile R&D laser platforms; Military & aerospace laser systems.

The DKDP crystal is a uniaxial crystal with excellent optical quality with an extinction ratio of >2000:1 (measured using a 632 nm He-Ne laser) with a wave front distortion of 98%. The DKDP electro-optic Q-switching capacitor is small (about 3-5pF), so the rise time is short (<0.5ns), and a narrow pulse width pulse laser can be output during Q-switching. Compared with the widely used electro-optic crystals on the market, DKDP crystals have higher damage thresholds; the damage threshold is >1GW/cm2 under optical conditions of 10 ns pulse width, 1064 nm wavelength and repetition frequency 10 Hz.

Features of DKDP Pockels Cell:

  • High deuteration (>98.0%) DKDP.
  • No static birefringence.
  • No photorefractive damage.
  • Resistant to environmental temperature.
  • Excellent electric-optical properties.
  • Sealant and adhesive free.
  • High extinction ratio
  • High damage threshold
  • Low λ/4 Voltage
  • Single Pass Optical Transmission
  • Compact design
  • Easy adjustment

Specifications of DKDP Pockels cell:

Extinction Ratio >5000:1
Wavefront Distortion < λ/8 @633nm
Capacitance according to different model
Single Pass Optical Transmission >98%
Damage Threshold >750MW/cm2 @1064nm, 10ns 10Hz
Spectral Range 240nm~1400nm
Typical Aperture Diameter

8mm~30mm

Typical Performance @1064nm

Type CR19 CR20 CR251 CR252 CR253 CR254
Dimension dia19*24mm dia20*29mm dia25.4*32mm dia25.4*39mm dia28*33mm dia25.3*42.5mm
Clear Aperture dia8mm dia8mm dia10mm dia10mm dia11mm dia13mm
Single pass optical transmission >98% >98% >98% >98% >98% >98%
Wavefront Distortion <λ/8 <λ/8 <λ/8 <λ/8 <λ/8 <λ/8

Extinction

Ratio@1064nm

 >5000:1 >5000:1 >5000:1 >5000:1 >5000:1 >5000:1
λ/4 Voltage 3200V+/-200V 3200V+/-200V 3200V+/-200V 3200V+/-200V 3200V+/-200V 3200V+/-200V
Capacitance <4.5pF <4.5pF <5pF <5pF <6.5pF <8pF
DamageThreshold 750MW/cm²@1064nm.10ns,10Hz
