9 X 9 X25 Mm LiNbO3 Piezoelectric Effect Crystals For EO Q Switch
9 X 9 X25 Mm LiNbO3 Piezoelectric Effect Crystals For EO Q Switch
9 X 9 X25 Mm LiNbO3 Piezoelectric Effect Crystals For EO Q Switch
9 X 9 X25 Mm LiNbO3 Piezoelectric Effect Crystals For EO Q Switch
Specifications
Brand Name :
Crystro
Model Number :
CR210.205-1
Certification :
SGS/COC
Place of Origin :
China
MOQ :
1pc
Price :
USD 20~200/pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000pcs per month
Delivery Time :
4-5 weeks
Packaging Details :
Transparent clean box
Material :
9 X 9 X25 mm LiNbO3 Crystal for EO Q Switch
Origin :
China
Crystal Sturucture :
Trigonal, Space group R3c, Point group 3m
Melting Point :
1253℃
Deliquescence :
None
Transparency Range :
420-5200nm
Absorption Coefficient :
~0.1%/cm @1064nm
Refractive Indices :
ne=2.156, no=2.232@1064nm
Description

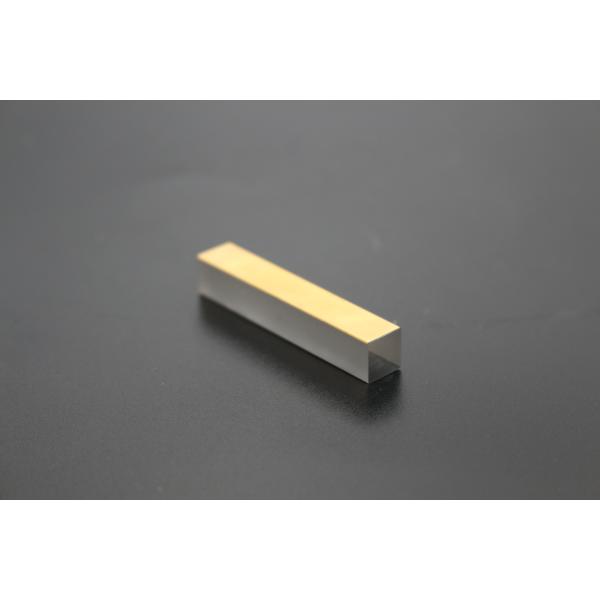

9 X 9 X25 mm LiNbO3 Crystal for EO Q Switch

LiNbO3 is also widely used as electro-optic modulators and O-switches for Nd: YAG, Nd: YLF and Ti:Sapphire lasers as well as modulators for fiber optics. The following table list the specifications of a typical LiNbO3 crystal used as Q-switch with transverse E-O modulation. The light propagates in z-axis. The electro-optic coefficients of LiNbO3 are: r33= 32 pm/V, r31= 10 pm/V, r22= 6.8 pm/V at at low frequency and r33= 31 pm/V, r31= 8.6 pm/V, r22= 3.4 pm/V at high electric frequency. The halfwave voltage: Vπ=λd/no3γc1, γc=(ne/no)3γ33-γ13.

Both pure LN and MgO doped LN (MgO:LN) crystals with gold coatings on side faces for electrodes are available

Crystro provides:

  • LiNbO3 wedges used for fiber optical isolators and circulators.
  • Reliable delivery
  • Strict quality control
  • Technical support
  • Very competitive prices

Specifications of LN EO components:

Wavefront Distortion: Less than λ/8 @ 633 nm
Dimension Tolerance: (W+/-0.1 mm) x (H+/-0.1 mm) x (L+0.5/-0.1 mm)
Clear Aperture: > 90% central area
Flatness: λ/8 @ 633 nm
Surface Quality: Scratch/Dig 10/5 per MIL-O-13830A
Parallelism: better than 20 arc seconds
Perpendicularity: 5 arc minutes
Angle Tolerance: Δθ < 0.5o, Δφ < 0.5o

LiNbO3 Q-switch Specifications:

Size 9 X 9 X25 mm3 or 4 X 4 X 15 mm3
Other size is available upon request
Tolerance of Size Z-axis: ± 0.2mm
X-axis and Y-axis: ± 0.1mm
Chanfer less than 0.5 mm at
Accuracy of Orientation Z-axis: ＜ ±5′,X-axis and Y-axis: ＜ ±10′
Parallelism ＜20′′
Finish 10/5 scratch/dig
Flatness λ/8 at 633nm
AR-Coating R＜0.2% @1064nm
Electrodes Gold/Chrome plated on X-faces
Wavefront Distortion ＜λ/4 @633nm
Extinction Ratio ＞400:1 @633nm, φ 6mm beam

9 X 9 X25 Mm LiNbO3 Piezoelectric Effect Crystals For EO Q Switch
