4 Lithium Tantalate LiTaO3 Wafer Polarized For Optical And SAW
4 Lithium Tantalate LiTaO3 Wafer Polarized For Optical And SAW
4 Lithium Tantalate LiTaO3 Wafer Polarized For Optical And SAW
4 Lithium Tantalate LiTaO3 Wafer Polarized For Optical And SAW
Specifications
Brand Name :
Crystro
Model Number :
CR211012-01
Certification :
SGS/COC
Place of Origin :
China
MOQ :
1pc
Price :
USD 20~200/pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
2000pcs per month
Delivery Time :
4-5 weeks
Packaging Details :
Transparent clean box
Item :
4" Lithium Tantlate LiTaO3 Wafer Polarized For Optical And SAW
Absorption edge :
270nm
Orientation :
X-112°Y,36°Y,42°Y±0.5
Diameter :
up to 6inch
Origin :
China
Delivery :
1-4 weeks
Shipment :
Express,DHL.Fedex
Packing :
individual container for each substrate, packed in bag filled with inert gas.
Description

4" Lithium Tantlate LiTaO3 Wafer Polarized For Optical And SAW

Lithium Tantalate (LT, LiTaO3) has unique properties, which as a material finds uses in Electro-Optical and Acousto-Optical applications. These can be : surface acoustic wave devices, bulk acoustic wave devices, piezo-electric transducers and piezoelectric sensors.The 36° and 42 ° cuts of Lithium Tantalate have shown widespread adoption for the telecommunications mobile phone handset market at frequencies from 800 to 2100 MHz. These orientations show an optimized bandwidth / insertion loss trade off in performance and are dominating the ever expanding mobile handset sales.

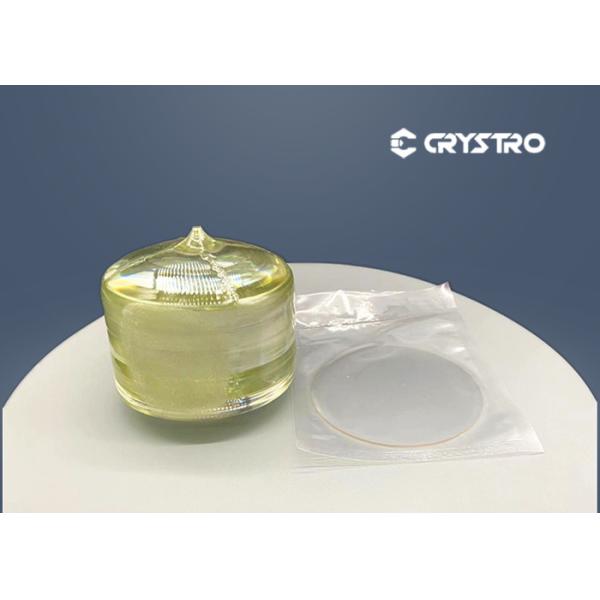

Crystro's LiTaO3 crystal is grown by Czochralski method.Max diameter reach 4inch,it's now the biggest size in this filed,we can custom size and specs ,rougness<0.5nm.

Other optical single crystals like GGG,SGGG,TGG,TSAG are also available.

Crystro provides:

  • Excellent photoelectric property
  • High Damage Threshold
  • High Curie Temperature

4
Basic Properties of LiTaO3:

Crystal Structure Trigonal, Space group R3c, Point group 3m
Cell Parameters a=5.154Å,c=13.781Å
Melting Point 1650℃
Curie Temperature 607℃
Mohs Hardness 5.5
Density 7.46g/cm3
Dielectric Constants ε11/ε0:51.7
ε33/ε0:44.5
Elastic Stiffness Coefficients CE11:2.33(×1011N/m2)
CE33:2.77(×1011N/m2)
Piezoelectric Strain Constants d22:2.4(×10-11C/N)
d33:0.8(×10-11C/N)
Transmission range 400-4500nm
Electro-optical coefficients r33=30.4pm/V
Refractive index at 632.8nm no=2.176,ne=2.180

Typical Specifications:

Size Boule or wafer ,Acoustic or Optical grade
Doping Fe, No Doping or With Fe
Boule Length ≥50mm
Wafer Thickness 0.25,0.35,0.50(mm)
Orientation Y42°/Y36°/X/Y/Z or Upon Request
Surface Process Single/Double Sides Polishing
TTV < 10μm
BOW BOW ± (25μm ~40um )
Warp ≤35μm
Flat Width 32.0±2.0(mm) or Upon Request
Roughness Ra≤10Å
Chamfe ≤0.1mm@45°
