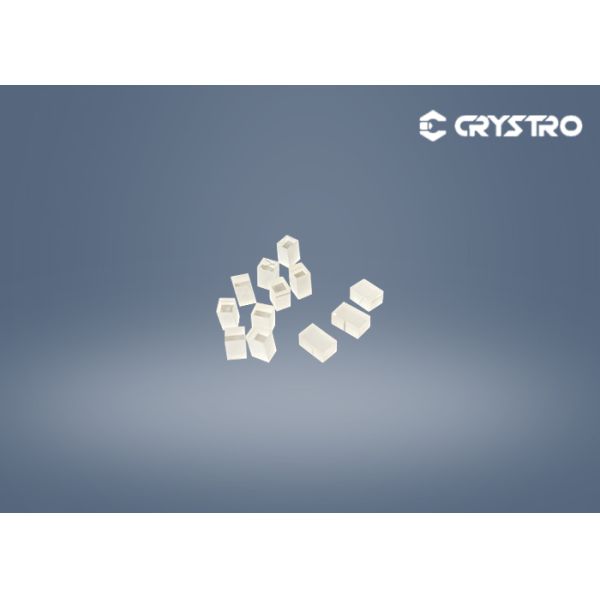

Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator
Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator
Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator
Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator
Specifications
Brand Name :
Crystro
Model Number :
CR211230-01
Certification :
SGS/ROHS/REACH
Place of Origin :
CHINA
MOQ :
1pcs
Price :
USD 10-100/pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs per week
Delivery Time :
1-4 weeks
Packaging Details :
Transparent clean box
Material :
Small Size 3x3.5x5mm TGG Magneto Optical Crystals For Fiber Isolator
Application :
Fiber Isolator
Key Selling Points :
High-accuracy
Lattice constant :
a=12.355
Melting point: :
1725℃
Dimensions :
3mm
Origin :
China
Chemical Formular :
TB3Ga5O12
Description

Small Size 3x3.5x5mm TGG Magneto Optical Crystals For Fiber Isolator

Terbium Gallium Garnet (TGG) Crystal Used for Fiber Isolator

TGG is an excellent magneto-optical crystal used in various Faraday devices (Rotator and Isolator) and small size crystals can be used in Finer Isolator.

Anhui Crystro now can supply TGG Crystal Boule up to Diameter 4 Inches,It is now the biggest size available in China.

All kinds of size are available from us like:

TGG rods 3x3.5x5mm, Dia2x10mm, Dia 5x 20mm,TGG cubes 5x5x10mm,TGG wafers,10 x 10x 0.5mm,TGG Plates,70x70x10mm...

.

Crystro is one of the leading companies in crystal manufacturing and processing in China. We specialize in R&D and processing of crystal materials.

Our products include Magneto-Optical Crystals, Laser Crystals, Piezoelectric Effect Crystals, Scintillation Crystals, Optical Substrate, and Optical Devices.

Features:

Large Size Boule Diameter: up to 4”

Extinction Ratio Typical: >35 dB High Grade: >40 dB

Verdet Constant 40 rad/T/m at 1064 nm

Refractive Index 1.95 at 1064 nm

​RoHS Document:

TGG-ROHS-ENGLISH.PD

Properties Document:

TGG Crystal.pdf

Main Specifications Physical and Chemical Properties
Directional accuracy <111>within ±15 arc min Chemical Formula Tb3Ga5O12
Wave front distortion <λ/8 wave total Lattice constants a=12.355
Extinction ratio 35-40dB Growth method Czochralski method
Diameter +0.00mm/-0.05mm Density 7.13g/cm3
Length +0.2mm/-0.2mm Mohs hardness 8
Chamfer 0.2mm at 45° Melting point 1725℃
Flatness <λ/10 wave at 633nm Index of refraction 1.954 at 1064nm
Parallelism <30 arc seconds Thermal conductivity 7.4 W·m-1·K-1
Verticality <5 arc minutes Size Dia2mm to 105mm
Surface quality 10/5 Scratch/Dig
AR coating <0.2%

Verdet Constant:

Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator

Transmission data Document:

TGG Transmission data.et

Small Size 5mm TGG Magneto Optical Crystals For Fiber Isolator
