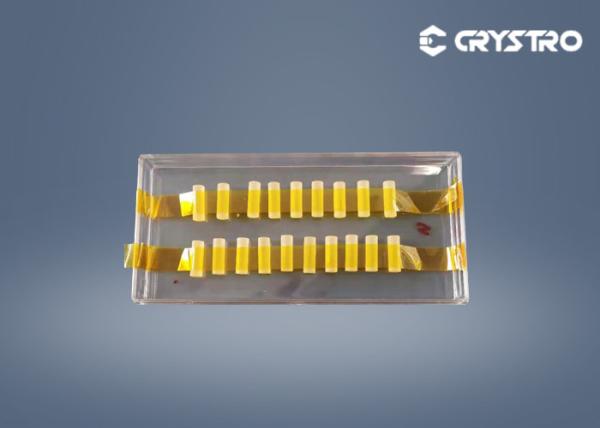

REACH Low Absorption Loss Dia 5mm TGG Rod High Power
REACH Low Absorption Loss Dia 5mm TGG Rod High Power
REACH Low Absorption Loss Dia 5mm TGG Rod High Power
REACH Low Absorption Loss Dia 5mm TGG Rod High Power
Specifications
Brand Name :
Crystro
Model Number :
CR211230-06
Certification :
SGS/ROHS/REACH
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
10000pcs per week
Delivery Time :
3-4 weeks
Packaging Details :
Transparent clean box
Material :
Dia 5mm TGG Rod With High Power Low Absorption Loss Magneto Optical Crystals
Diameter :
5mm,6mm,7mm,10mm,12mm
Chemical Formula :
=TB3Ga5O12
Advantage :
High Power,Low Absoprtion Loss
Lattic value :
a=12.355Å
Extinction Ratio :
<40dB
Brand name :
CRYSTRO
Origin :
China
Description

Dia 5mm TGG Rod With High Power Low Absorption Loss Magneto Optical Crystals

The terbium gallium garnite (TGG) crystal has high magnetooptic constant, low optical loss, high thermal conductivity and high laser damage threshold.TGG single crystal is the best magneto-optical material for making Faraday polarizers and isolators with applicable wavelength of 400~1100nm(not including 470~500nm).

The TGG crystal possesses a large Verdet constant (35 RadT−1m−1 at 1064 nm), high thermal conductivity (7.4 Wm−1K−1), low optical losses (< 0.1%/cm) and high laser damage threshold (> 1 GW/cm2).

Features:

  • Large Verdet Constant (Typical 35 dB,Up to 40dB)
  • Low optical losses (<0.1%/cm)
  • High laser damage threshold (>1GW/cm2).
  • TGG has twice the Verdet constant of a terbium-doped glass.
  • Thermal conductivity is an order of magnitude greater than typical glass.

CRYSTRO supply TGG crystal with:

Orientation [111] within ±15 arc min
Wave Front Distortion <1/8 wave
Extinction Ratio >35dB
Diameter Tolerance +0.00mm/-0.05mm
Length Tolerance +0.2mm/-0.2mm
Chamfer 0.10mm@45º
Flatness <1/10 wave at 633nm
Parallelism < 30 arc Seconds
Perpendicularity < 5 arc min
Surface Quality 10/5 Scratch/Dig
AR Coating <0.2%
Large Dimensions of Crystals 2.0--76 mm in diameter

Main Properties:

Chemical Formula TB3Ga5O12
Lattic Parameter a=12.355Å
Growth Method Czochralski
Density 7.13g/cm3
Mohs Hardness 8.0
Melting Point 1725℃
Refractive Index 1.954 at 1064nm
