80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
80KA 15000J Supersonic Resistance Welding Machine Energy Storage Spot Welder
Specifications
Brand Name :
zhiyao
Model Number :
ZYC-1060-10600Q
Place of Origin :
China
MOQ :
1set
Price :
$7000-$22000(The more you buy, the cheaper you get)
Payment Terms :
T/T
Supply Ability :
50 sets / month
Delivery Time :
5-8 work days
Packaging Details :
Wooden packing
Name :
Energy storage spot welder
Input Power :
380V/AC 50HZ
Rated power :
6000-60000J
Secondary short-circuit current :
25-80KA
Electrode pressure :
4.5-9.5KN
Electrode working stroke :
50MM
Electrode arm extension length :
200-250MM
Air source :
≥0.5MPa
Cooling water pressure :
≥0.3MPa
Cooling water flow :
9-12L/Min
Description

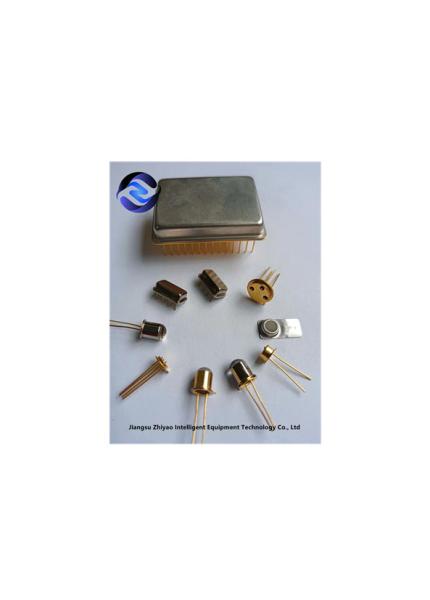

Capacitive energy storage spot welding machine, is the use of power frequency alternating current through the rectifier rectifier after charging to the capacitor, the stored electrical energy is then discharged by the welding transformer into a low electrical voltage, the energy is more concentrated and stable pulse current, through the contact point of the welded workpiece to generate resistance heat to weld the metal. Features: No need for current limiting resistors to reduce heat generation. · The solder joints are not blackened, eliminating the need for sanding. · The internal power supply voltage regulator device ensures that the output voltage is constant and the welding consistency is good. · Full digital control, good precision. World famous factory original devices, quality assurance. · This machine is designed to operate simply, eliminating complex tuning and teaching procedures, and the welding effect is good. · Main welding materials: stainless steel, brass, alloy copper, aluminum alloy, etc.
Model Input Power Rated power Secondary short-circuit current Electrode pressure Electrode working stroke Electrode arm extension length Maximum welding capacity Air source Cooling water pressure Cooling water flow unit price
ZYC1060Q 380V/AC 50HZ 6000J 25KA 4.5KN 50MM 200MM 2.5+2.5stainless steel ≥0.5MPa ≥0.3MPa 9L/Min $7,000
ZYC1080Q 380V/AC 50HZ 8000J 30KA 5KN 50MM 200MM 3+3stainless steel ≥0.5MPa ≥0.3MPa 9L/Min $9,500
ZYC10120Q 380V/AC 50HZ 12000J 35KA 1.5KN-5.5KN 50MM 250MM 2.5+2.5Aluminum plate ≥0.5MPa ≥0.3MPa 12L/Min $13,000
ZYC10150Q 380V/AC 50HZ 15000J 40KA 3.5KN-5.5KN 50MM 250MM 2.5+2.5brass ≥0.5MPa ≥0.3MPa 12L/Min $15,000
ZYC10300Q 380V/AC 50HZ 30000J 60KA 5.5KN-9.5KN 50MM 250MM 3+3stainless steel ≥0.5MPa ≥0.3MPa 12L/Min $19,000
ZYC10600Q 380V/AC 50HZ 60000J 80KA 5.5KN-9.5KN 50MM 250MM 4+4stainless steel ≥0.5MPa ≥0.3MPa 12L/Min $22,000
