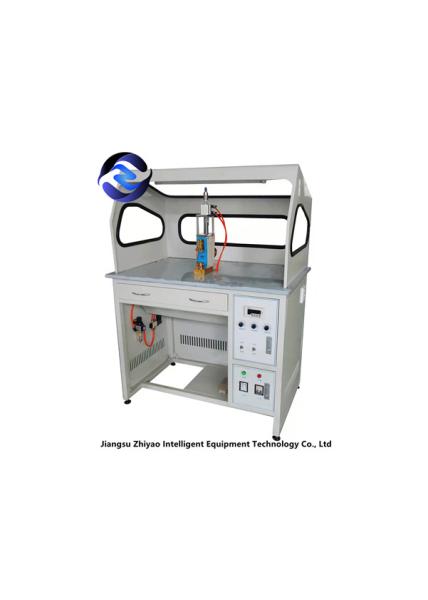

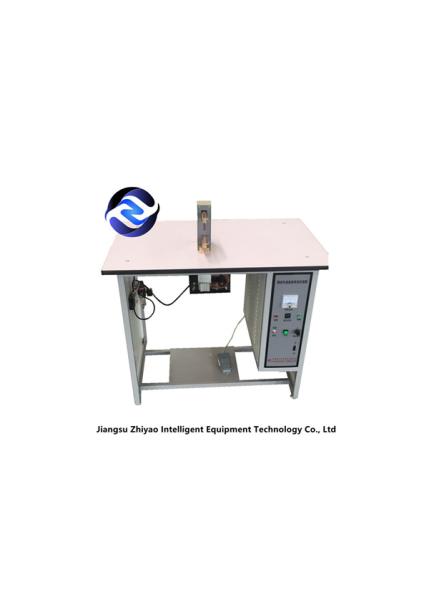

300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
300J 4.5KA 0.5MPa Ultra Resistance Welding Machine Energy Storage Spot Welder
Specifications
Brand Name :
zhiyao
Model Number :
ZYC-03Q
Place of Origin :
China
MOQ :
1set
Price :
＄1150/set
Payment Terms :
T/T
Supply Ability :
100 sets / month
Delivery Time :
5-8 work days
Packaging Details :
Wooden packing
Name :
Energy Storage Spot Welder
Input Power :
380V/AC 50HZ,+Zero line
Rated power :
300J
Secondary short-circuit current :
4.5KA
Electrode pressure :
100-800N
Electrode working stroke :
15MM
Electrode arm extension length :
68MM
Maximum welding capacity :
0.8+0.8stainless steel
Air source :
≥0.5MPa
Description

300J Energy storage spot welder

Capacitive energy storage spot welding machine, is the use of power frequency alternating current through the rectifier rectifier after charging to the capacitor, the stored electrical energy is then discharged by the welding transformer into a low electrical voltage, the energy is more concentrated and stable pulse current, through the contact point of the welded workpiece to generate resistance heat to weld the metal. Features: No need for current limiting resistors to reduce heat generation. · The solder joints are not blackened, eliminating the need for sanding. · The internal power supply voltage regulator device ensures that the output voltage is constant and the welding consistency is good. · Full digital control, good precision. World famous factory original devices, quality assurance. · This machine is designed to operate simply, eliminating complex tuning and teaching procedures, and the welding effect is good. · Main welding materials: stainless steel, brass, alloy copper, aluminum alloy, etc.

Model Input Power Rated power Secondary short-circuit current Electrode pressure Electrode working stroke Electrode arm extension length Maximum welding capacity Air source Cooling water pressure Cooling water flow unit price
ZYC03Q 380V/AC 50HZ,+Zero line 300J 4.5KA 100-800N 15MM 68MM 0.8+0.8stainless steel ≥0.5MPa / / $1150
