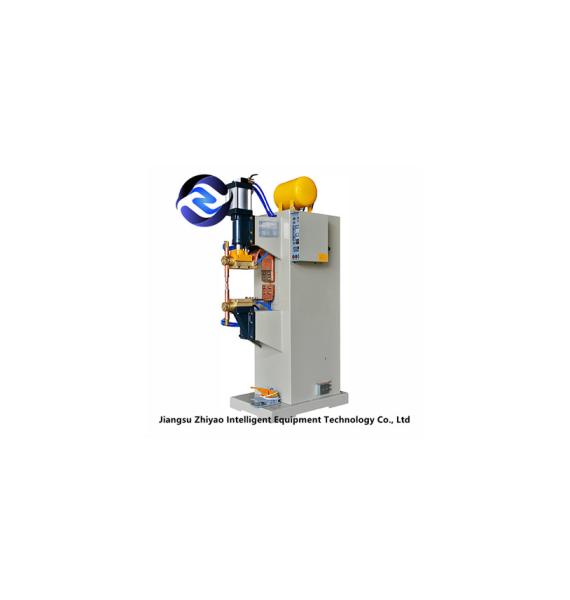

63KW 63KVA Portable Spot Resistance Welding Machine Mild Steel AC Spot Welder
63KW 63KVA Portable Spot Resistance Welding Machine Mild Steel AC Spot Welder
63KW 63KVA Portable Spot Resistance Welding Machine Mild Steel AC Spot Welder
63KW 63KVA Portable Spot Resistance Welding Machine Mild Steel AC Spot Welder
Specifications
Brand Name :
zhiyao
Model Number :
ZY-63Q
Place of Origin :
China
MOQ :
1set
Price :
＄3950/set
Payment Terms :
T/T
Supply Ability :
50 sets / month
Delivery Time :
5-8 work days
Packaging Details :
Wooden packing
Name :
AC Spot Welder
Model :
Pneumatic
Input Power :
380V/AC,150A
Rated power(5%Staging rate) :
63KVA
Secondary short-circuit current :
24KA
Electrode pressure :
2.5KN-5.5KN
Electrode working stroke :
50MM
Electrode arm extension length :
20-250MM
Maximum welding capacity :
4+4mild steel
Air source :
≥0.5MPa
Cooling water pressure :
≥0.3MPa
Cooling water flow :
12L/Min
Description

AC spot welder is a kind of machine that can firmly weld workpieces together. AC spot welding machine is composed of step-down transformer, current regulator, heat dissipation system, welding wire, handle and other accessories. During welding, there is no need to use welding electrodes, but only take the two pre welded workpieces as the two electrodes of the circuit, and use the high temperature generated at the contact resistance to melt the metal instantaneously, so as to firmly weld the workpieces together. It can be widely used in automobile, aviation, construction, machinery, metal products, electrical switches and other industries. It can carry out high-quality and strong brazing or brazing of various low-carbon steel, stainless steel and non-ferrous metal plates and wires.
Functional features:
·High precision slide rail type motion mechanism
·Stable welding current of pressurizing mechanism
·Contactless switch adjustment
·High level single chip microcomputer fast control
·Constant current and constant voltage output adjustable closed-loop control
·Automatic protection of overload and lack of voltage
·Output current monitoring

Model
 Input power Rated power(5%Staging rate) Secondary short-circuit current Electrode pressure Electrode working stroke Electrode arm extension length Maximum welding capacity Air source Cooling water pressure Cooling water flow
unit price
ZY63Q 380V/AC,150A 63KVA 24KA 2.5KN-5.5KN 50MM 20-250MM 4+4mild steel ≥0.5MPa ≥0.3MPa 12L/Min $3,950
