Specifications
Brand Name :
CSC
Model Number :
LZ2822 LZ3224 LZ16.5
Certification :
AS9100,IATF16949,ISO9001,ISO14001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Industrial Packing/Single box Packing
Supply Ability :
Negotiation
Description

Precision Bottom Roller Bearings UWL Series for Weaving Machine UWL3224 UWL2822

Key Feature

CSC can produce high quality Bottom Roller Bearing as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters

Product Specification

Precision bottom roller bearing is made of high grade steel with long-life and high precision. The parts are exchangeable for inner ring, outer ring and needle subassembly. It adopts strengthened nylon cage in new structure with patent technique, and reliable locating cover with higher precision. With the nice finishing and advanced technology, CSC products can take place of the imported bearing.

While assembling or using, roller is more easily adjusted. The bearing can reduce the mechanical wave, improve the CV value remarkably and extend the bearing's life.

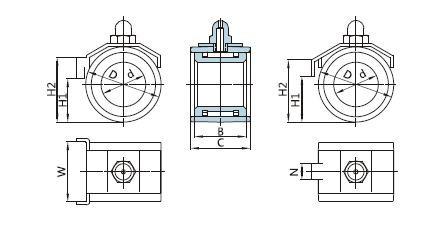

Bearing No. Boundary Dimension(mm) Weight(kg)
GB ISO D d B C H1 H2 W N
-0.05 -0.01 ±0.025   min max 0.4 -0.2
LZ2800 UWL2800 28 16.5 19 22 17 23 5.9 0.06
LZ2812 28 16.5 19 22 16 24 12.2 0.06
LZ2820 UWL2820 28 16.5 19 22 16 24 20.2 0.06
LZ2822 UWL2822 28 16.5 19 22 16 24 22.2 0.06
LZ3200 UWL3200 32 19 20 23 19 25 5.9 0.082
LZ3224 UWL3224 32 19 20 23 19 27 24.2 0.082
LZ3226 UWL3226 32 19 20 23 19 27 26.2 0.082
LZ3600 UWL3600 36 21 22 25 21 27 5.9 0.119
LZ3624 UWL3624 36 21 22 25 21 29 24.2 0.119
LZ3626 UWL3626 36 21 22 25 21 29 26.2 0.119
LZ4000 UWL4000 40 23 23.5 27 23 29 5.9 0.16
LZ4024 UWL4024 40 23 23.5 27 24 32 24.2 0.16
LZ16.5 30 16.5 19 23 10 24 22.4 0.07
LZ3000 UWL3000 30 18.5 19 22 18 27   5.9 0.066
LZ18.5 UWL3026 30 18.5 19 22 18 27 26.2 0.066
LZ19 36 19 22 26 12.5 28.5 25.4 0.116
LZ22 42 22 23 27 15 33 25.4 0.16
LZ25 47 25 25 29 16.7 38 28.2 0.218
LZ3200G 32 19 20 23 0.08

Application

  • Textile Machinery

Selection Of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

  • Stress Analyzes
  • Storage and Durability Calculations
  • Design advice for "non-standard bearings"
  • Selection of Greasing
  • Quality Analysis
  • Damage Analysis
