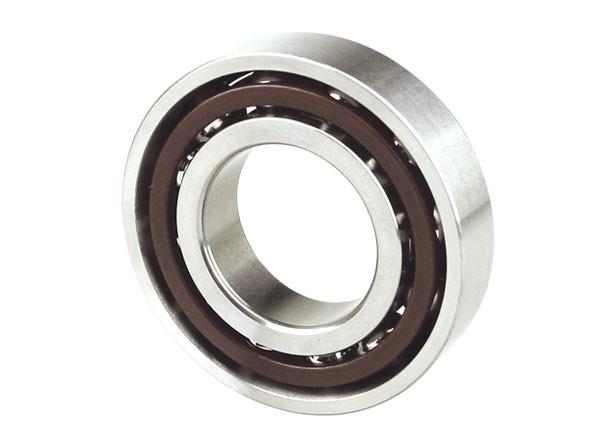

Angular Contact Ball Bearings 7205BTN 7207BTN Series Universal Match for Pump
Angular Contact Ball Bearings 7205BTN 7207BTN Series Universal Match for Pump
Specifications
Brand Name :
CSC
Model Number :
7200 B Series
Certification :
AS9100,IATF16949,ISO9001,ISO14001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Negotiation
Delivery Time :
Negotiation
Packaging Details :
Industrial Packing/Single box Packing
Supply Ability :
Negotiation
Product Name :
Angular Contact Ball Bearings
Precision Rating :
P6,P5,P4,ABEC 3,ABEC 5,ABEC 7
Cage :
TN Nylon Retainer,M Brass Retainer
Contact Angle :
B=40°
Precision rating :
P0 P6 P5 P4 P2
Seals type :
Sealed,ZZ RS,2RS
Material :
Chrome Steel/GCr15
Lubrication :
Oil/Greased
Feature :
low noise with strict controlling of the quality
Description

Angular Contact Ball Bearings 7200 B Series Universal Match for Pump

Key Feature

CSC can produce high quality ACBB Series as the customer requests.We are happy to produce further construction methods. Please do not hesitate to contact us for special bearing characters

When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction.

Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction.

Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring.

For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.

Product Specification

Bearing Number d D B r1,r2 r3,r4 weight
—— mm min min Kg
7202 B 15 35 11 0.6 0.3 0.043
7203 B 17 40 12 0.6 0.3 0.062
7204 B 20 47 14 1 0.3 0.1
7205 B 25 52 15 1 0.3 0.14
7206 B 30 62 16 1 0.3 0.19
7207 B 35 72 17 1.1 0.3 0.28
7208 B 40 80 18 1.1 0.6 0.36
7209 B 45 85 19 1.1 0.6 0.41
7210 B 50 90 20 1.1 0.6 0.46
7211 B 55 100 21 1.5 0.6 0.61
7212 B 60 110 22 1.5 0.6 0.8
7213 B 65 120 23 1.5 0.6 1
7214 B 70 125 24 1.5 0.6 1.1
7215 B 75 130 25 1.5 0.6 1.2
7216 B 80 140 26 2 1 1.45
7217 B 85 150 28 1.1 0.6 1.8
7218 B 90 160 30 2 1 2.25
7219 B 95 170 32 2.1 1.1 2.7
7220 B 100 180 34 2.1 1.1 3.25
7221 B 105 190 36 2.1 1.1 3.85
7222 B 110 200 38 2.1 1.1 4.55
7224 B 120 215 40 2.1 1.1 5.4

Product Name: Angular Contact Ball Bearings
Cage: TN Nylon Retainer,M Brass Retainer
Precision Rating: P0 P6 P5 P4 P2
Material: Chrome Steel/GCr15
Precision Rating: P6,P5,P4,ABEC 3,ABEC 5,ABEC 7
Contact Angle: B=40°
Seals Type: Sealed,ZZ RS,2RS
Lubrication: Oil/Greased

Application

  • Logistic Transport Facilities

  • Automation Technology

  • Machine Tools

  • Aerospace Industry

  • Mechanical Engineering

  • Industrial Robots

  • Textile Machinery

  • Automotive Industry

  • Construction Machinery

  • Electric Motors

  • Gearboxes

  • Compressor & Pump

Selection of Bearings

Our team of specialists from the German rolling bearing industry supports you by stress analyzes and calculations in the selection of the right bearings.

  • Stress Analyzes

  • Storage and Durability Calculations

  • Design Advice for "Non-standard bearings"

  • Selection of Greasing

  • Quality Analysis

  • Damage Analysis

Details

Packing

Paper box,Carton,Wooden Pallets,According to the requirements of clients

a) Plastic tube+ Carton+ Pallet

b) Plastic Bag+ Kraft Paper+ Carton+ Pallet

Commercial Packing

Plastic Bag+ Color Box+ Carton+ Pallet

Delivery

3-30 days after order of Solid bicycle tire tubes

FAQ:
Q: Can you print our logo on the bearings?
A: yes we can

Q: Why do we choose your company?
A: Our company has been a professional bearing manufacturer for more than 10 year. We pay more attention to quality. For each shipping, there are professionalists to check quality of products.

Q: What is the delivery time?
A: We have stock for most of the bearings. For small quantity, we will arrange delivery about 1-5 days,if you need Urgently,please confirm them with us.

Q: What is your payment term?
A: Our payment term include Alipay,T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.

Q: What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.

If you are interested in any model, please feel free to contact with me!
