Specifications
Brand Name :
yongsheng dredger
Model Number :
YSCSD600
Certification :
CCS/ISO9001
Place of Origin :
China
MOQ :
1 sets
Price :
530000 to 820000 USD dollars/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
8 sets/year
Delivery Time :
55days
Packaging Details :
In container
Type :
Suction Dredging Machines For Sand dredging
Colour :
Orange and black
Custom building :
Accepted
Certificate :
CCS
Material :
Marine using plate
Engine :
MAN Germany
Pump :
Centrifugal slurry dredging pump
Cutter head :
Crown type
Description

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

Introduction for cutter suction dredger from Yongsheng Dredger

CCS certificate for Cutter suction dredger from Yongsheng dredger is available

The dredger can work for land filling, sand dredging, port deepening, channel dredging and land reclamation.

The design, construction, quality inspection of our cutter suction dredger is based on the standards

and regulations of CCS. The hull, machinery equipment and other spares are at the requirements of CCS as well.

The hull is square, cross keel, which is full welding steel structure, and authorized by CCS.

The dredgers we are producing are diesel engine driven, self-propelled or non self-propelled,

portable hydraulic cutter suction dredgers. The hull uses dismantle and box-like structure, dismantle

for shipment and assembly at working site.

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

Dredger working condition

The Maximum Temperature 500C

The Minimum Temperature -100C

The Maximum Temperature of engine room 500C

The Maximum Temperature of The River (Sea) Water 300C

The Relative Humidity ≤80%

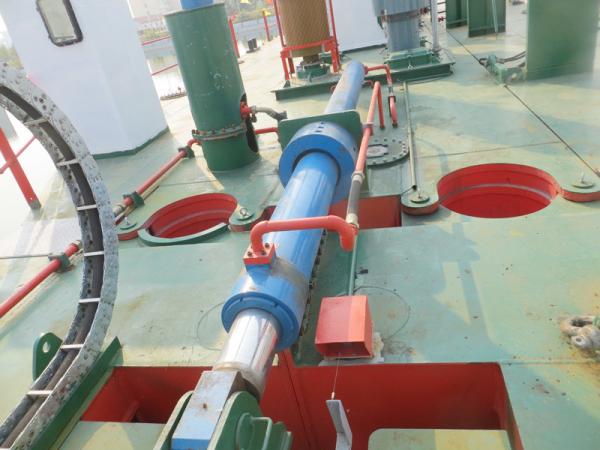

Arrangement of the complete dredger

Main equipment on the dredger:

——Cutter head and driving system

—— Frame of cutter head

　 ——Frame of ladder A

——lifting winch for sand suction pipe

——Right and left traversing winches

——Operating room

——Dredging pump

——Deck crane

——Gearbox of dredging pump

——Main diesel oil engine and auxiliary diesel oil engine

——Generator and auxiliary equipment

——Position spud and accessories

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

Model list for hydraulic cutter suction sand dredger
Model Inch Diameter pipe Water flow Solid capacity Total power Dredging depth

Discharge

distance
YSCSD150 6 Inch 150 mm 260 m3/h 30 cbm/h 102 KW 4 m 600 m
YSCSD200 8 Inch 200 mm 600 m3/h 80 cbm/h 213 KW 6 m 800 m
YSCSD250 10 inch 250 mm 1,000 m3/h 160 cbm/h 367 KW 8 m 1,100 m
YSCSD300 12 inch 300 mm 1,500 m3/h 240 cbm/h 591 KW 10 m 1,100 m
YSCSD350 14 inch 350 mm 2,400 m3/h 360 cbm/h 971 KW 12 m 1,200 m
YSCSD400 16 Inch 400 mm 3,000 m3/h 500 cbm/h 1,057 KW 14 m 1,400 m
YSCSD450 18 Inch 450 mm 3,500 m3/h 700 cbm/h 1,462 KW 15 m 1,500 m
YSCSD500 20 Inch 500 mm 3,800 m3/h 760 cbm/h 1,648 KW 15 m 1,600m
YSCSD600 24 Inch 600 mm 6,000 m3/h 900 cbm/h 2,511 KW 15 m 1,800 m
YSCSD650 26 Inch 650 mm 7,000 m3/h 1,400 cbm/h 3,705 KW Max.18m 1,800m

Packaging and shipment

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

Cutter suction sand dredger production in workshop

High Efficiency 650mm 26 inch Cutter Suction Sand Dredger with 1864KW Cummins Marine Diesel Engine

1. Working video for 26 inch cutter suction dredger in river
https://www.youtube.com/watch?v=ymHf17z0zn4
2. 4 sets of new cutter suction dredgers in stock
https://www.youtube.com/watch?v=b-IuGroZ3f4&t=16s
3. Assembly and test for 7000 m3/h cutter suction dredger in workshop
https://youtu.be/fTPXEwE9Kw0
4. Cutter suction dredger protection and restoration project for mountain, water, forest, lake, and sand integrated
https://youtu.be/ZnERf6AhVDY
