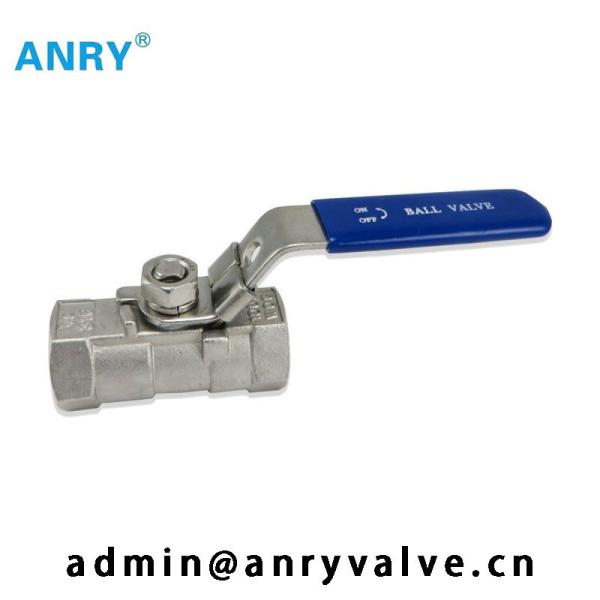

BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
Specifications
Brand Name :
ANRY
Model Number :
Q11F
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
SIZE :
1/4" - 2"
Name :
Forged Steel Ball Valve
Type :
2pc Body Type, Full (Reduce)port
Check and Test :
API598
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Description

1pc Casted Steel BSP NPT Threaded CF8 CF8M Body SS304 SS316 Ball PTFE Seat Ball Valve

2pc Forged Steel Ball Valve800/1500LB (2000/3000psi)

2pc Body Type, Full (Reduce)port

Design and Manufacture:ANSI B 16.34 BS 5351

Check and Test:API598

Threaded ends:BSPT,NPT,DIN2999

Anti-Static

Fire-Safety

Technical parameters :

Main part material

No. Part name Material
1 Body A105 N F316
2 Seat insert PTFE PTFE
3 Ball SS316 SS316
4 Bldy insert A105 N F316
5 Stem SS316 SS316
6 Packing Graphite Graphite
7 Wrentch SS304 SS304
8 Locking nut SS304 SS304
9 Gasket PTFE PTFE
10 Stem sealing SS316 SS316
11 Gland Graphite Graphite
12 Anti static devise SS SS

Dimensions

Class 800
NPS(inch) L W H d WT
1/2 83 145 80 14 0.9
3/4x1/2 83 145 80 14 0.8
3/4 90 170 85 20 1.5
1x3/4 105 170 85 20 1.4
1x3/4 110 170 90 25 2.2
1 1/4x1 110 170 90 25 2
1 1/4 125 270 95 32 3.2
1 1/2x1 1/4 125 270 95 32 3.1
1 1/2x1 1/4 130 270 95 38 4.2
2x1 1/2 140 270 95 38 3.7
2 155 270 100 49 7
2 1/2x2 155 270 100 49 6.5
Class 1500
NPS(inch) L W H d WT
1/2 104 145 80 14 1
3/4x1/2 104 145 80 14 1
3/4 125 170 85 20 2.6
1x3/4 125 170 85 20 2.6
1x3/4 130 170 90 25 5
1 1/4x1 130 170 90 25 5
1 1/4 155 270 95 32 6
1 1/2x1 1/4 155 270 95 32 6
1 1/2x1 1/4 180 380 135 38 10
2x1 1/2 180 380 135 38 10
2 180 380 145 49 12

BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve

BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve

BSP NPT Threaded SS Ball Valve 1 Piece SS304 SS316 PTFE Seat Full Bore Ball Valve
