Specifications
Brand Name :
ANRY
Model Number :
J61H
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Name :
Y Type Globe Valve
Pressure :
800Lb
Media :
Water
Application :
General
Power :
Manual,Pneumatic,Hydraulic,electric,Wheel Hand Operated
Material :
Casting,Stainless Steel,Forged
Structure :
Stop,Control,Shutoff,Globe
Port size :
3/4''-12'',2"~20",1/2"-4" ; DN15-DN100
Standard :
DIN,ANSI,JIS,BS,API
Body material :
Carbon Steel,WCB,A105,CF8M
Description
Y Type Globe Valve 800Lb
Standard Material Specifications
NO.
Part Name
CS to ASTM
AS to ASTM
SS to ASTM
Type A105
Type F22
Type F304(L)
Type F316(L)
1
Body
A105
A182 F22
A182 F304(L)
A182 F316(L)
2
Disc
A276 420
A276 304
A276 304(L)
A276 316(L)
3
Stem
A182 F6
A182 F304
A182 F304(L)
A182 F316(L)
4
Gasket
Corrugated SS + graphite
SS + PTFE
5
Bonnet
A105
A276 304
A276 304(L)
A276 316(L)
6
Bonnet Bolt
A193 B7
A193 B16
A193 B8
A193 B8M
7
Stem Packing
Flexible Graphite
PTFE
8
Gland
A276 410
A182 F304(L)
A182 F316(L)
9
Gland Flange
A216 WCB
A351 CF8
10
Handwheel
A197
11
Nameplate
SS
12
H.W.Nut
A194 2H
A194 4
A194 8
A194 8M
13
Yoke Nut
A276 410
14
Gland Nut
A194 2H
A194 4
A194 8
A194 8M
15
Gland Eyebolt
A193 B7
A193 B16
A193 B8
A193 B8M
16
Pin
A276 420
A276 304
Suitable Medium
W.O.G.etc
W.O.G.etc
HNO3,CH3OOH etc
Suitable Temperature
-29~425
-29~550
-29~180
Note: Other materials are available upon request.

Technical parameters :
Dimensions (mm) and Weights (Kg)

NPS
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
L
98
111
120
140
140
170
H(OPEN)
175
215
254
305
305
365
W
100
125
160
160
180
200
Weights
5
6.3
7.6
9.8
13.8
14.0

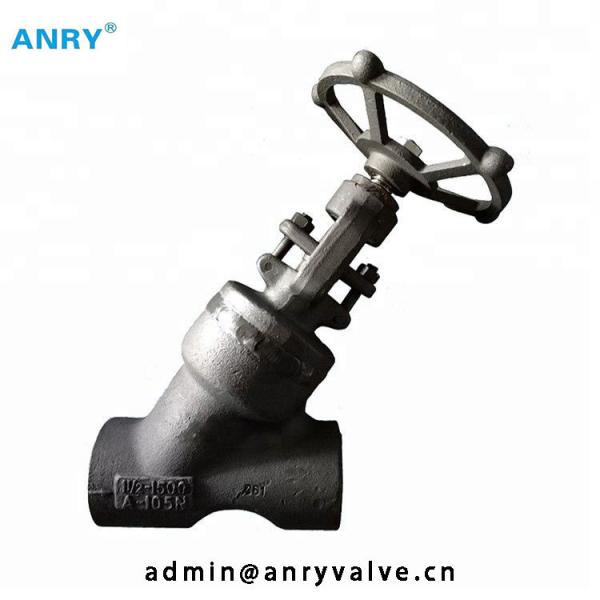

Y Type  Disc High Pressure 800Lb forged steel A105N Globe Valve
