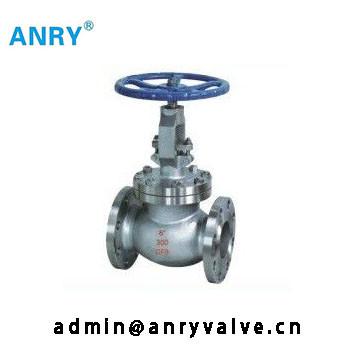

BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
Specifications
Brand Name :
ANRY
Model Number :
J41H
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
Material :
Stainless Steel,Casting,Forged carbon steel/stainless steel,Alloy Steel
Media :
Water,gas,oil,gas/ oil /water,Crude oil&Natural gas&acid medium
Body material :
stainless steel,WCB,CF8 CF8M,SS201
Connection :
Flange Ends
Standard :
ANSI BS DIN JIS,DIN,ASTM
Working pressure :
1.6Mpa,150LB flanged ball valve
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Description

Decsription
1. 1/2"~36"(DN15~DN900)
2. W. P.:PN16 CLASS 150/300/600/900/1500/2500
3. W. T.:-20℃~400℃ (-4℉~752℉)
4. Design: BS 1873
5. Flange Dimension: ASME B16.5
6. Face to Face: ASME B16.10
7. OS&Y

ITEM PARTS MATERIAL
Trim1 Trim5 Trim8
1 BODY ASTM A216-WCB
2 SEAT RING ASTM A216-WCB+Cr13 ASTM A105+STL#6 ASTM A105+STL#6
3 DISC ASTM A216-WCB+Cr13 ASTM A105+STL#6 ASTM A216-WCB+Cr13
4 STEM ASTM A182-F6a
5 GASKET SPW SS304+GRAPHITE
6 BONNET ASTM A216-WCB
7 NUT ASTM A194-2H
8 STUD ASTM A193-B7
9 BACK SEAT ASTM A276-410
10 PACKING A GRAPHITE
11 PACKING B
12 PACKING C
13 GLAND ASTM A276-410
14 GLAND FLANGE ASTM A216-WCB
15 STEM BUSHING ASTM A439 D-2
16 SCREW ASTM A29-1035
17 HANDWHEEL DUCTILE IRON
18 WASHER ASTM A29-1025
19 HANDWHEEL NUT ASTM A29-1045
20 DISC NUT ASTM A276-410
21 EYE BOLT ASTM A193-B7

BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve

BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve

BS1873 Casted Steel WCB SS304 SS316 CF8 CF8M Body 13%CR Disc Globe Valve
