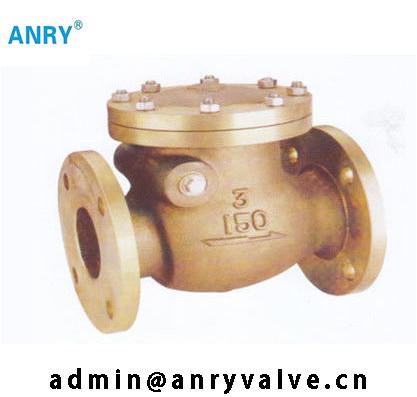

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
Specifications
Brand Name :
Anry
Model Number :
H44H
Certification :
API CE
Place of Origin :
Wenzhou
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Material :
Casting,Bronze
Power :
Manual
Pressure :
Medium Pressure,PN10/PN16/PN25
Temperature of media :
Medium Temperature,Normal Temperature
Media :
Water,Gas,oil,Water/gas/oil/sewage
Standard or nonstandard :
Standard,ANSI BS DIN
Connection :
flange
Color :
Customer's Request
Size :
2"~24"; DN50~DN600
Standard :
DIN,EN,ASTM,ANSI,API
Face to face :
ASME B16.10,DIN3202; ANSI B 16.10
Nominal pressure :
0.6MPa,PN1.0MPa
Working pressure :
PN16
name :
swing check valve
Description

Structure
Horizontal Swing Type
Regular Port
Bolted Bonnet
P.T Ratings to MSS-SP-80
Integer Seat
Design:MSS-SP-80,BS 5154,JIS B2011
Butt Weld Ends to ASME B16.25; DIN 3239,EN12627
Flanged Ends to ASME B16.5;DIN2543~DIN2547;EN1092
Body material Bronze,Al bronze ( C95800, C83600, C84400, B62)

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF

Bronze Marine Fuel Swing Check Valve C84400 B62 Sea Water Flanged RF
