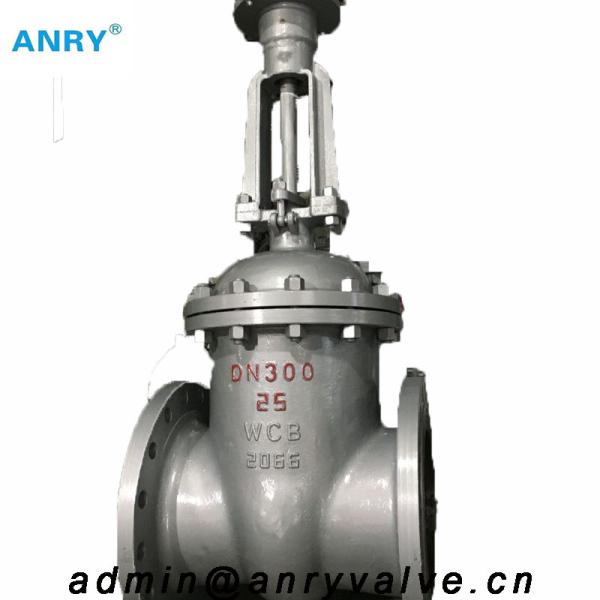

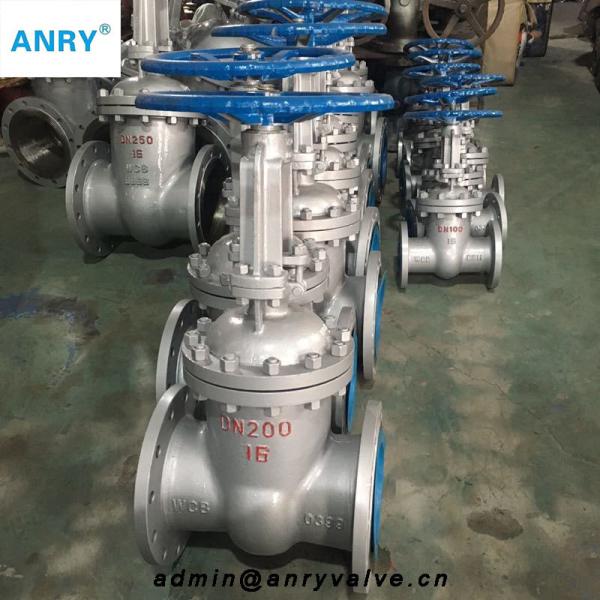

Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Casted Steel 20 GOST Gate Valve FLanged RF Handwheel Gear Operated
Specifications
Brand Name :
Anry
Model Number :
Z41H
Certification :
API,CE
Place of Origin :
Wenzhou
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Name :
cast steel gate valve
Pressure :
PN16,PN25,PN40,PN63,PN100
Size :
DN25-DN1200
Material :
Steel20,WCB,SS304,SS316,CF8,CF8M,GS-C25
Connection :
RF,BW,flange,welding
Operation :
Handwheel,gear
Description

Technical Specifications:

(1) Design Standard: GOST 5762-2002

(2) Face to Face Dimension: GOST 3706-93

(3) End Flange Dimension: GOST 12815-80 End BW Dimension: GB/T 12224

(4) Structures: Straight Pattern

(5) Material of Body: GS-C25, S.S 304, S.S 316

(6) Pressure Rating: PN16, PN25, PN40, PN63,PN160

(7) Test standard: GOST356-80

Feature:

– Straight pattern

– Outside Screw and York

– Bolted bonnet

– Seat in stellite or 13%Cr

– Available with gear operator

– Flange Ends

– Butt-welding Ends

Actuation: can operate with lever, gear box, pneumatic or electric actuator with handwheel for emergencies Medium: The valve is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc. Working temperature: from -46oC or -50oC (stainless steel constructions) and -29oC (carbon steel constructions) up to 600℃
