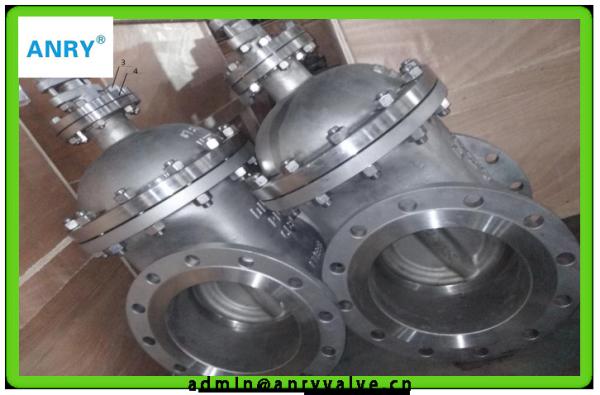

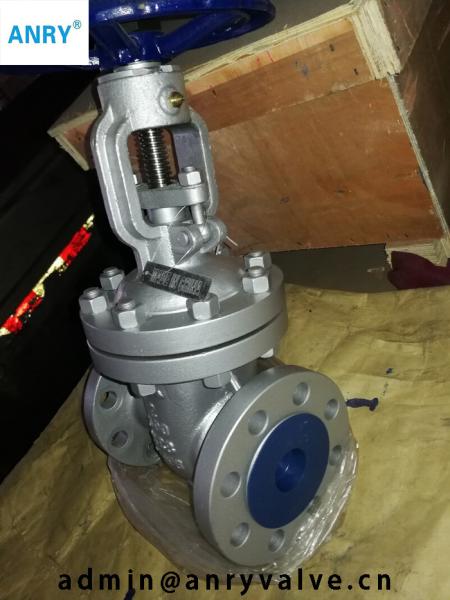

High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve
High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve
High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve
High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve
Specifications
Brand Name :
ANRY
Model Number :
Z41H
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
Name :
JIS Gate Valve
Face to face :
JIS B2002
Test and inspection :
API598
Flanged connection :
JIS B2239
Power :
Hydraulic,Pneumatic,Electric
Body material :
carbon steel
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Description
API 603 light body gate valve
OS&Y, Rising stem, Flexible Wedge
Bolted Bonnet,Threaded or welded seat ring
A216 WCB, A351 CF8, A351 CF8M,
A351 CF3, A351 CF3M,
Standards compliance
Design and Manufacture:
Face to face(end to end): API 603
Flanged connection: JIS B2239
Test and inspection: API598,
Handwheel,Pneumatic/Electric
actuator operated are available.

Technical parameters :
No. Part name CF8 CF3 CF8M CF3M
1 Bonnet/ Body CF8 CF3 CF8M CF3M
2 Disc CF8 CF3 CF8M CF3M
3 Stem F304 F304L F316 F316L
4 Packing PTFE PTFE PTFE PTFE
5 Gasket PTFE+304 PTFE+304L PTFE+316 PTFE+316L
6 Gland CF8 CF3 CF8M CF3M
7 Gland packing 304 304L 316 316L
8 Bolt A193-B8 A193-B8 A193-B8M A193-B8M
9 Nut A194-8M A194-8M A194-8M A194-8M
CLASS 150~1500 CAST STEEL GATE VALVE

Class

 Dimensions
150 Size inch 2 2-1/2 3 4 6 8 10 12
L-RF mm 178 191 203 229 267 292 330 356
L1-BW mm 216 241 283 305 403 419 457 502
L2-RTJ mm 191 203 216 241 279 305 343 368
H mm 400 490 510 585 795 1015 1230 1465
K mm 200 200 250 300 350 350 400 450
Wt RF kg 18 28 30 50 85 128 220 310
BW kg 15 22 26 40 77 118 200 290
RTJ kg 20 29 37 56 84 138 210 310
300 Size inch 2 2-1/2 3 4 6 8 10 12
L-RF mm 216 241 283 305 403 419 457 502
L1-BW
L2-RTJ mm 232 257 298 321 419 435 473 518
H mm 470 525 533 610 845 1050 1295 1600
K mm 200 200 250 300 350 350 400 450
Wt RF kg 24 44 48 73 145 226 350 580
BW
RTJ kg 20 35 37 54 110 174 285 495
600 Size inch 2 2-1/2 3 4 6 8 10 12
L-RF mm 292 330 356 432 559 660 787 838
L1-BW
L2-RTJ mm 295 333 359 435 562 664 791 841
H mm 495 550 615 735 1005 1245 1480 1730
K mm 200 250 300 350 450 500 600 750
Wt RF kg 35 55 72 126 365 444 700 940
BW
RTJ kg 32 47 64 103 218 374 570 830
900 Size inch 2 2-1/2 3 4 6 8 10 12
L-RF mm 368 419 381 457 610 737 838 965
L1-BW
L2-RTJ mm 371 422 384 460 613 740 841 968
H mm 590 700 740 870 1120 1390 1592 1765

High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve

High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve

High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve

High Performance Light Type Valves API 603 WCB Body 13% CR F6a Flanged Flexible Wedge Gate Valve
