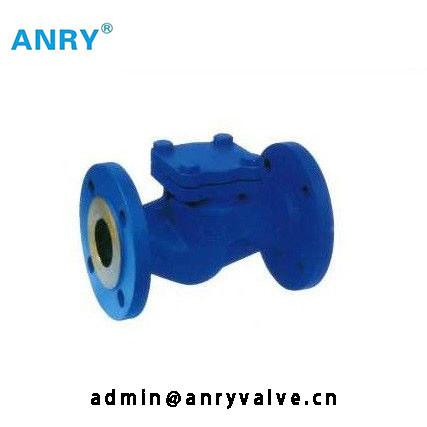

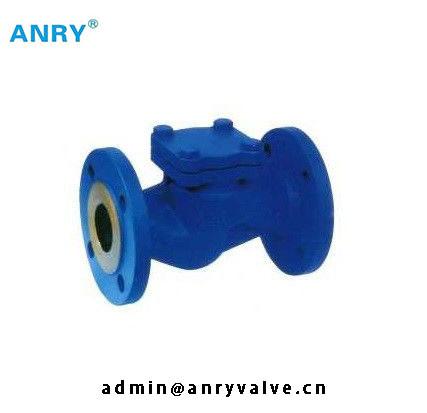

Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
Specifications
Brand Name :
ANRY
Model Number :
H41H
Certification :
API,CE,ISO
Place of Origin :
WENZHOU
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plywood case
Delivery Time :
7 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs/month
Name :
DIN LIFT TYPE CHECK VALVE
Face to Face :
EN558-1
Flange End :
EN1092-1
Test :
EN12266
Material :
WCB,SS304,SS316,CF8,CF8M,WC6
Connection :
Falnged RF,Welding BW
Description

DIN Lift Type PN25 PN40 PN64 WCB Body Stellite Overlay Disc Check Valve

DIN LIFT TYPE CHECK VALVE PN16/25/40

Face to Face:EN558-1

Flange End:EN1092-1

Test:EN12266

Technical parameters :

Main Part Material

Part Body/Bonnet Plug Seal Bolt/Nut
Material GS-C25 2Cr13 2Cr13,STL CS
1Cr18Ni9Ti 1Cr18Ni9Ti 1Cr18Ni9Ti,STL 1Cr18Ni9Ti
CF3,CF8
CF3,CF8		 SS316 304L,316L,304,316,STL 1Cr18Ni9Ti

Dimensions

DN L H Kv Wt.Kg
PN16 PN25 PN40
15 130 70 5.7 2.4 3.5 3.8
20 150 70 7.8 3 4.4 4.9
25 160 80 11.8 3.8 5 5.9
32 180 80 17.9 5.7 6 7.1
40 200 85 27.5 7.4 8 10.4
50 230 95 48 10.3 11 12.3
65 290 110 77.6 15.2 16 22.7
80 310 130 109 20.4 21 28.5
100 350 155 168 31 32 40
125 400 165 251 49 51 64
150 480 215 389 69 70 90
200 600 285 664 132 136 170
250 730 325 1017 198 218 240
300 850 365 1446 278 330 370

Lift Type WCB Check Valve Stellite Overlay Flanged Non Return

Lift Type WCB Check Valve Stellite Overlay Flanged Non Return

Lift Type WCB Check Valve Stellite Overlay Flanged Non Return
